EDX5116ADSE-3C-E - Elpida

EDX5116ADSE-3C-E Details

• Manufacturer Part Number:

  EDX5116ADSE-3C-E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

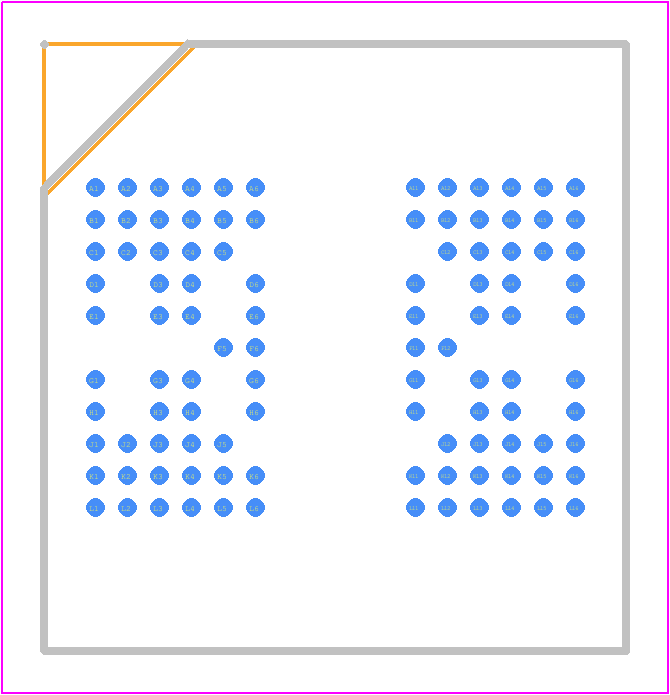

• Part Package Code:

  BGA

• Package Description:

  ROHS COMPLIANT, FBGA-104

• Pin Count:

  104

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.28

• Manufacturer:

  Elpida Memory Inc

• YTEOL:

  0

• Access Mode:

  MULTI BANK PAGE BURST

• Access Time-Max:

  0.065 ns

• Additional Feature:

  AUTO/SELF REFRESH

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PBGA-B104

• JESD-609 Code:

  e1

• Length:

  15.18 mm

• Memory Density:

  536870912 bit

• Memory IC Type:

  RAMBUS DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  104

• Number of Words:

  33554432 words

• Number of Words Code:

  32000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  100 °C

• Organization:

  32MX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA104,11X16,50/32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Refresh Cycles:

  32768

• Seated Height-Max:

  1.6 mm

• Self Refresh:

  YES

• Standby Current-Max:

  0.025 A

• Supply Current-Max:

  0.98 mA

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  14.56 mm
