EEEHAC221XAP - Panasonic

Description: Aluminum Electrolytic Capacitors - SMD 220UF 16V HA SMD

Download EEEHAC221XAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEHAC221XAP - Panasonic - PCB symbol
click to zoom
PCB Footprints

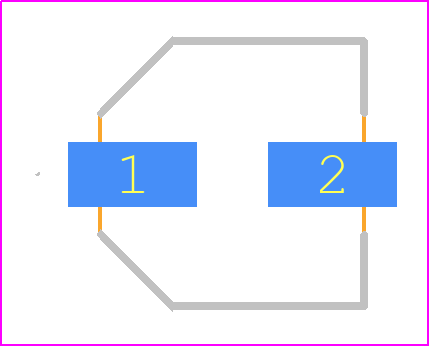

EEEHAC221XAP - Panasonic PCB footprint - Other - Other - SMD_Lytic_D8
click to zoom
3D Models
EEEHAC221XAP - Panasonic - 3D model - Other - SMD_Lytic_D8
click to zoom

EEEHAC221XAP Details

  • Manufacturer Part Number:

    EEEHAC221XAP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    7.7 mm

  • Leakage Current:

    0.0352 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    105 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.2

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

EEEHAC221XAP Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the EEEHAC221XAP is designed to withstand high vibrations. It meets the vibration test requirements of IEC 60068-2-6, with a vibration frequency range of 10-2000 Hz and an acceleration of 10 G.
  • The EEEHAC221XAP has a moisture sensitivity level (MSL) of 2a, which means it can withstand a maximum of 24 hours of exposure to 30°C (86°F) and 60% relative humidity. It's recommended to follow proper handling and storage procedures to prevent moisture absorption.
  • The ESR of the EEEHAC221XAP is not explicitly stated in the datasheet, but it's typically around 0.05 Ω to 0.1 Ω for aluminum electrolytic capacitors in this class. However, it's recommended to consult with Panasonic or a authorized distributor for the exact ESR value.
  • No, the EEEHAC221XAP is rated for a maximum operating temperature of 105°C (221°F). Using it above this temperature can lead to reduced lifespan, increased leakage current, and potentially catastrophic failure.
