EEETG1C221UP - Panasonic

Description: Panasonic 220µF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +125°C 8mm

Download EEETG1C221UP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEETG1C221UP - Panasonic - PCB symbol
click to zoom
PCB Footprints

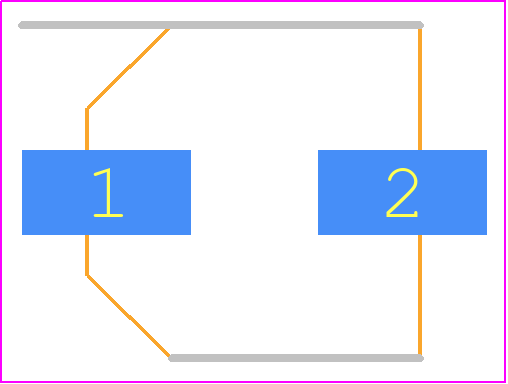

EEETG1C221UP - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 8x10.2
click to zoom
3D Models
EEETG1C221UP - Panasonic - 3D model - Capacitor Al Electrolytic - 8x10.2
click to zoom

EEETG1C221UP Details

  • Manufacturer Part Number:

    EEETG1C221UP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR is MEASURED AT 100KHZ,

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    500 mΩ

  • Height:

    10.2 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.0352 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    128.05 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.23

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEETG1C221UP Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEETG1C221UP is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
  • Yes, EEETG1C221UP is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions are within the specified limits.
  • The ESR of EEETG1C221UP is specified as 0.015Ω max. To handle this, ensure that your design takes into account the ESR when calculating the overall impedance of the circuit. You may need to add additional components or adjust the layout to minimize the impact of ESR on your design.
  • Yes, EEETG1C221UP is compatible with lead-free soldering processes. Panasonic Electronic Components ensures that their components meet the requirements for lead-free soldering, making it suitable for use in RoHS-compliant designs.
  • The recommended storage condition for EEETG1C221UP is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. Avoid storing the components in direct sunlight or near heat sources.
