The recommended land pattern for EEETK2A470AQ can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The ESR of EEETK2A470AQ is typically specified in the datasheet. To handle ESR in your design, you can use impedance analysis tools or simulation software to model the capacitor's behavior in your circuit. You can also consider using a capacitor with a lower ESR if high-frequency performance is critical in your application.
The EEETK2A470AQ is rated for operation up to 125°C, but its performance and lifespan may be affected at high temperatures. If you need to use the capacitor in a high-temperature environment, you should consult with Panasonic Electronic Components' application engineers or consider using a capacitor specifically designed for high-temperature applications.
To ensure the reliability of EEETK2A470AQ, follow proper design and manufacturing guidelines, such as using a robust PCB design, selecting the right soldering process, and controlling the operating voltage and temperature. You should also consider implementing derating and margining in your design to account for component tolerances and variations.
The EEETK2A470AQ is designed to meet certain vibration and shock standards, but its performance may be affected in extreme environments. If you need to use the capacitor in a high-vibration or high-shock environment, you should consult with Panasonic Electronic Components' application engineers or consider using a capacitor specifically designed for such applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEETK2A470AQ Overview

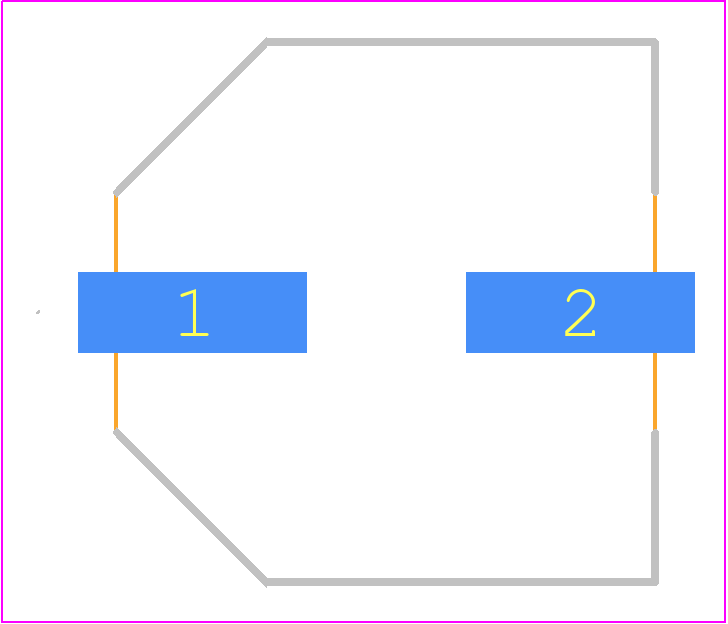

Use the download button to access the EEETK2A470AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEETK,
or try a keyword search, such as Aluminum Electrolytic Capacitors
