EEHZE1V151V - Panasonic

EEHZE1V151V Frequently Asked Questions (FAQs)

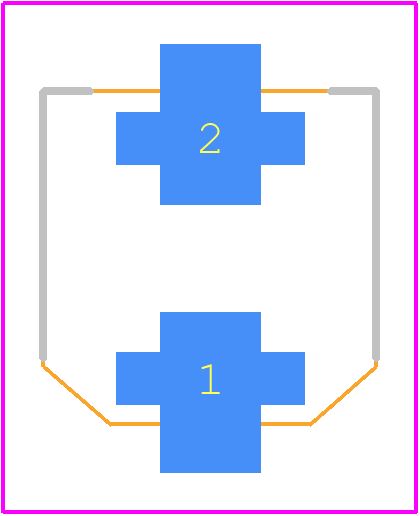

• What is the recommended land pattern for EEHZE1V151V?
  The recommended land pattern for EEHZE1V151V can be found in Panasonic's recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.5mm and a spacing of 1.5mm between pads.
• How do I handle the high ESR of EEHZE1V151V in my design?
  To handle the high ESR of EEHZE1V151V, consider using a low-ESR capacitor in parallel, optimizing the PCB layout to reduce parasitic inductance, and selecting a capacitor with a lower ESR value if possible. Additionally, ensure that the capacitor is properly decoupled and bypassed to minimize the impact of ESR on the circuit.
• Can I use EEHZE1V151V in a high-temperature environment?
  While EEHZE1V151V has a rated operating temperature range of -40°C to 105°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet. For high-temperature environments, consider using a capacitor with a higher temperature rating or consulting with a thermal management expert to ensure reliable operation.
• How do I ensure the reliability of EEHZE1V151V in my design?
  To ensure the reliability of EEHZE1V151V, follow proper PCB design and assembly guidelines, ensure proper voltage derating, and consider using a capacitor with a higher reliability rating (e.g., automotive or industrial grade). Additionally, perform thorough testing and validation to ensure the capacitor meets the required specifications.
• Can I replace EEHZE1V151V with a similar capacitor from another manufacturer?
  While it may be possible to replace EEHZE1V151V with a similar capacitor from another manufacturer, it's crucial to ensure that the replacement capacitor meets the same specifications, including capacitance, voltage rating, ESR, and temperature range. Consult with a component engineer or perform thorough testing to ensure compatibility and reliability.
