EEHZS1E561P - Panasonic

Description: Hybrid Aluminium Electrolytic Capacitor, 560 µF, 25 V, ZS- Series, ± 20%, Radial Can - SMD

Download EEHZS1E561P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEHZS1E561P - Panasonic - PCB symbol
click to zoom

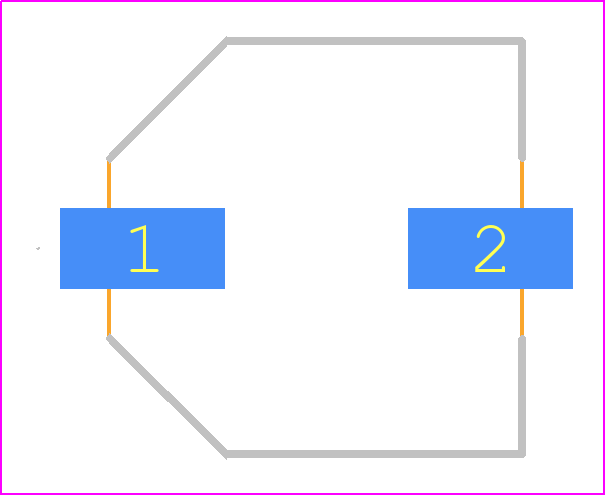

PCB Footprints
EEHZS1E561P - Panasonic PCB footprint - Other - Other - Hybrid_G_G16
click to zoom
3D Models
EEHZS1E561P - Panasonic - 3D model - Other - Hybrid_G_G16
click to zoom

EEHZS1E561P Details

  • Manufacturer Part Number:

    EEHZS1E561P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    11 mΩ

  • Height:

    16.5 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.14 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    435 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

EEHZS1E561P Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEHZS1E561P can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface mount components.
  • To prevent damage, handle the EEHZS1E561P by the body, avoid touching the leads or electrical contacts, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum storage temperature for EEHZS1E561P is typically 30°C to 40°C (86°F to 104°F) with a relative humidity of 60% to 90%. However, it's recommended to check the specific storage conditions with Panasonic Electronic Components or the supplier.
  • The EEHZS1E561P is designed for general-purpose use, but it may not be suitable for high-vibration environments. For such applications, consider using components with specific vibration-resistant designs or consult with Panasonic Electronic Components for guidance.
  • Follow the recommended soldering profile and temperature guidelines provided in the datasheet or by Panasonic Electronic Components. A general guideline is to use a soldering iron with a temperature of 250°C to 260°C (482°F to 500°F) and a soldering time of 2 to 3 seconds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEHZS1E561P Overview

Use the download button to access the EEHZS1E561P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEHZS, or try a keyword search, such as Ceramic Capacitors
