The recommended soldering temperature for EEHZU1V471V is between 250°C to 260°C for a maximum of 5 seconds.
Yes, the EEHZU1V471V is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high resonance frequency.
The derating curve for the EEHZU1V471V capacitor can be found in the Panasonic Capacitor Selection Guide or by contacting Panasonic's technical support. It provides guidance on reducing the voltage rating based on operating temperature and ripple current.
Yes, the EEHZU1V471V capacitor is AEC-Q200 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the capacitor meets the specific requirements of the vehicle manufacturer and the application.
The EEHZU1V471V capacitor has an MSL rating of 2a, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEHZU1V471V Overview

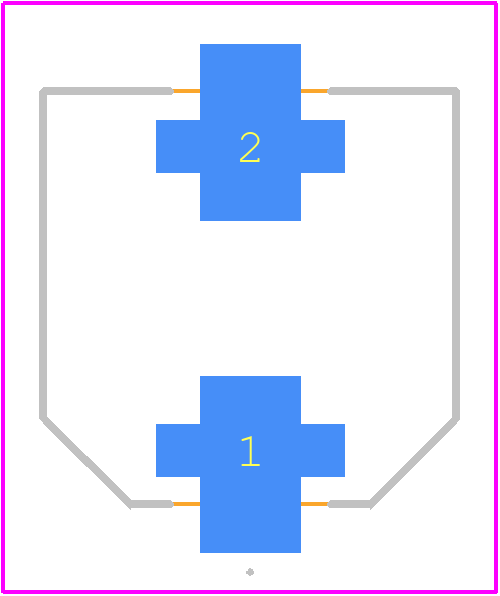

Use the download button to access the EEHZU1V471V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEHZU,
or try a keyword search, such as Ceramic Capacitors
