EEUEB1C102 - Panasonic

Description: PANASONIC - EEU-EB1C102 - ALUMINUM ELECTROLYTIC CAPACITOR, 1000UF, 20%, 16V, RADIAL

Download EEUEB1C102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUEB1C102 - Panasonic - PCB symbol
click to zoom
PCB Footprints

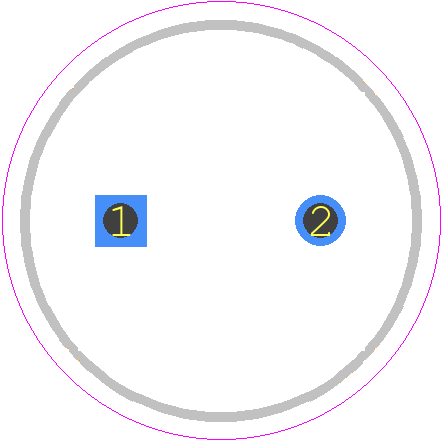

EEUEB1C102 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - EEU-EB1C102
click to zoom
3D Models
EEUEB1C102 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - EEU-EB1C102
click to zoom

EEUEB1C102 Details

  • Manufacturer Part Number:

    EEUEB1C102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    28 Weeks, 1 Day

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.16 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    430 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EEUEB1C102 Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a preheating temperature of 150°C (302°F) to 180°C (356°F) for 30 seconds to 60 seconds.
  • The EEUEB1C102 is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency applications such as decoupling and filtering.
  • Yes, the EEUEB1C102 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • Panasonic recommends storing EEUEB1C102 capacitors in a dry, cool place with a temperature range of 5°C (41°F) to 30°C (86°F) and a relative humidity of 60% or less.
  • While the EEUEB1C102 capacitor is a high-reliability component, it is not specifically designed for automotive applications. For automotive use, Panasonic offers other capacitor series that meet the AEC-Q200 standard, such as the EEH-Z series.
