EEUEB1J470 - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead, 105?C 5000h - 10000h

Download EEUEB1J470 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUEB1J470 - Panasonic - PCB symbol
click to zoom
PCB Footprints

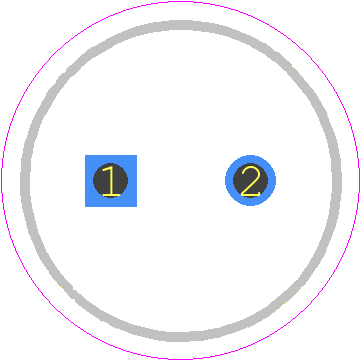

EEUEB1J470 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8*15
click to zoom
3D Models
EEUEB1J470 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 8*15
click to zoom

EEUEB1J470 Details

  • Manufacturer Part Number:

    EEUEB1J470

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.02961 mA

  • Length:

    15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    94 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

EEUEB1J470 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for EEUEB1J470 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the EEUEB1J470 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the allowed limits.
  • The ESR of the EEUEB1J470 capacitor is typically around 10 ohms at 100 kHz, but it's recommended to check the datasheet or contact Panasonic for the exact value.
  • Yes, the EEUEB1J470 capacitor is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as automotive and industrial systems.
  • The shelf life of the EEUEB1J470 capacitor is typically 2 years from the date of manufacture, but it's recommended to check the storage conditions and follow Panasonic's storage guidelines to ensure the capacitor remains within its specifications.
