Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 2°C/s (3.6°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
The EEUEB2E470 is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency applications, such as decoupling and filtering in high-speed digital circuits.
Yes, the EEUEB2E470 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature resistance, and resistance to vibration and shock.
Panasonic recommends storing EEUEB2E470 capacitors in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 60% or less.
Yes, the EEUEB2E470 is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications, such as in automotive, industrial, and aerospace systems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEUEB2E470 Overview

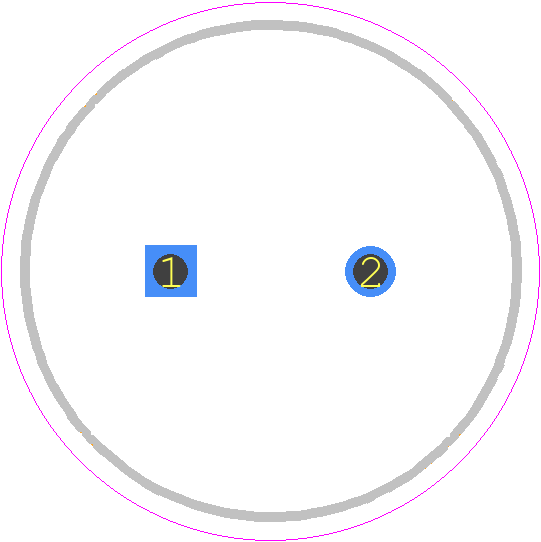

Use the download button to access the EEUEB2E470 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUEB,
or try a keyword search, such as Aluminum Electrolytic Capacitors
