The recommended land pattern for EEUFC1E331L is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
Yes, EEUFC1E331L is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions are within the specified limits.
EEUFC1E331L follows the standard voltage derating curve, where the maximum operating voltage is reduced as the temperature increases. For example, at 125°C, the maximum operating voltage is reduced to 80% of the rated voltage.
EEUFC1E331L should be stored in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. It's essential to avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
EEUFC1E331L is not designed for use in humid environments and may be susceptible to moisture-related failures. If operation in humid environments is required, it's recommended to use a conformal coating or other moisture-protection measures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEUFC1E331L Overview

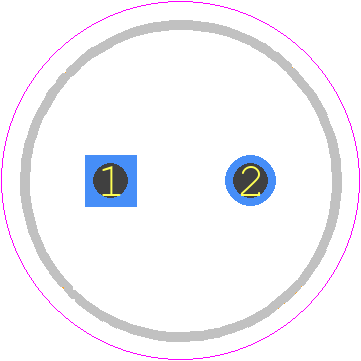

Use the download button to access the EEUFC1E331L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFC,
or try a keyword search, such as Aluminum Electrolytic Capacitors
