EEUFR0J122L - Panasonic

Description: Panasonic Aluminium Electrolytic Capacitor 1200μF 6.3V dc 8mm FR Radial Series, Through Hole Electrolytic, ±20%

Download EEUFR0J122L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFR0J122L - Panasonic - PCB symbol
click to zoom
PCB Footprints

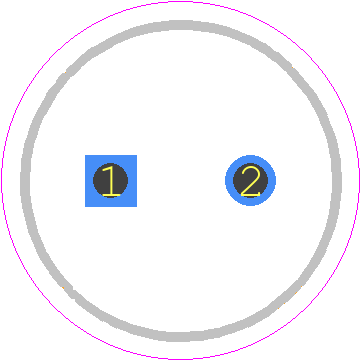

EEUFR0J122L - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - FR A 8.5X16.5
click to zoom
3D Models
EEUFR0J122L - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - FR A 8.5X16.5
click to zoom

EEUFR0J122L Details

  • Manufacturer Part Number:

    EEUFR0J122L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    1200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0756 mA

  • Length:

    15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    992 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.24

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

EEUFR0J122L Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEUFR0J122L is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
  • Yes, EEUFR0J122L is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating.
  • EEUFR0J122L follows the standard voltage derating curve, where the maximum operating voltage decreases as the temperature increases. Consult the datasheet for specific derating values.
  • Yes, EEUFR0J122L is compatible with lead-free soldering processes, including SnAgCu and other RoHS-compliant solders.
  • EEUFR0J122L should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
