Panasonic recommends a PCB layout with a solid ground plane and a small footprint to minimize ESL and ESR. A 4-terminal connection is recommended to reduce the effect of lead inductance.
To handle the high ripple current, ensure that the capacitor is connected to a low-ESR circuit, and consider adding a series resistor to reduce the ripple current. Additionally, ensure that the capacitor is operated within its specified ripple current rating.
Panasonic provides a derating curve in the datasheet, which shows the reduction in capacitance and voltage rating at high temperatures. For example, at 105°C, the capacitance is derated to 80% of its nominal value.
Yes, the EEUFR1C562B is designed to withstand high vibrations. However, it's essential to ensure that the capacitor is properly mounted and secured to the PCB to prevent mechanical stress and damage.
The ESR of EEUFR1C562B is not explicitly stated in the datasheet, but it can be estimated using the impedance vs. frequency graph provided. At high frequencies (e.g., 100 kHz), the ESR is typically in the range of 10-20 mΩ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEUFR1C562B Overview

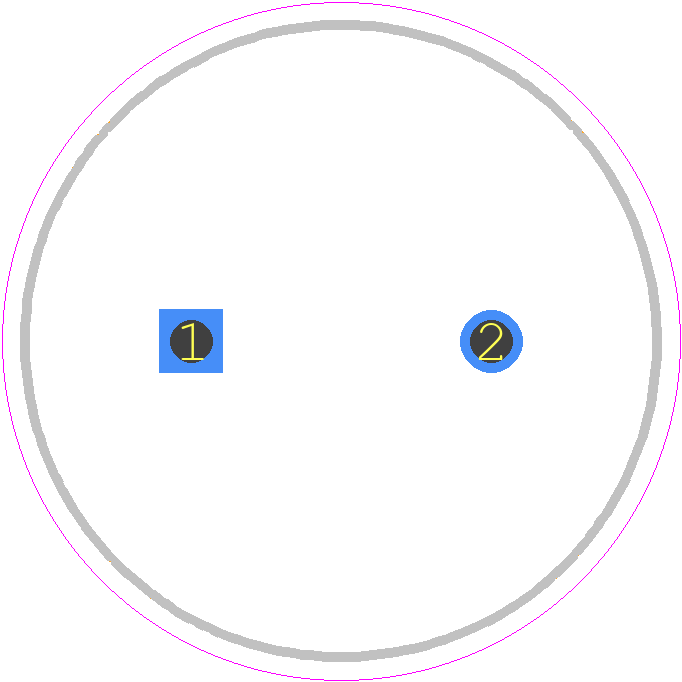

Use the download button to access the EEUFR1C562B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFR,
or try a keyword search, such as Aluminum Electrolytic Capacitors
