EGXF251ELL101MK40S - Chemi-Con

Description: 100 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C

Download EGXF251ELL101MK40S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EGXF251ELL101MK40S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

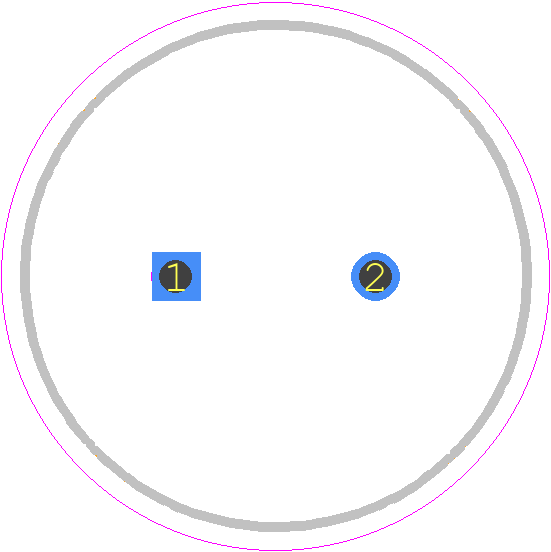

EGXF251ELL101MK40S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 12.5*40
click to zoom
3D Models
EGXF251ELL101MK40S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 12.5*40
click to zoom

EGXF251ELL101MK40S Details

  • Manufacturer Part Number:

    EGXF251ELL101MK40S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7.31

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    752.5 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EGXF251ELL101MK40S Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The EGXF251ELL101MK40S is designed to operate in temperatures up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Chemi-Con's application notes for specific guidance.
  • The EGXF251ELL101MK40S is designed to meet the vibration and shock requirements of IEC 60068-2-6 and IEC 60068-2-27, respectively. However, it's essential to consult Chemi-Con's application notes and perform thorough testing to ensure the capacitor meets the specific requirements of your application.
  • Chemi-Con recommends following proper mounting and handling procedures to prevent damage to the capacitor. This includes avoiding excessive bending or flexing, using proper torque values for screw terminals, and handling the capacitor by the body rather than the leads.
  • The EGXF251ELL101MK40S is designed to handle high-frequency ripple current, but the specific frequency and amplitude of the ripple current may affect the capacitor's performance and lifespan. Consult Chemi-Con's application notes and perform thorough testing to ensure the capacitor meets the requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EGXF251ELL101MK40S Overview

Use the download button to access the EGXF251ELL101MK40S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EGXF2, or try a keyword search, such as Aluminum Electrolytic Capacitors
