The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the EGXF630ELL681MK30S is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The EGXF630ELL681MK30S has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, the capacitance and ESR may degrade over time. It's essential to consider the temperature derating factors specified in the datasheet to ensure reliable operation.
Yes, the EGXF630ELL681MK30S is a high-reliability capacitor that meets the requirements of various industries, including aerospace and automotive. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific requirements of your application.
The EGXF630ELL681MK30S has a moisture sensitivity level of MSL 2, which means it can withstand normal humidity levels. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption, which can affect the capacitor's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EGXF630ELL681MK30S Overview

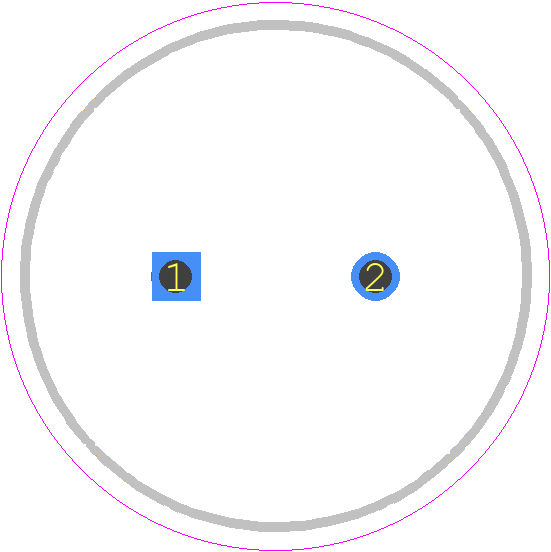

Use the download button to access the EGXF630ELL681MK30S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EGXF6,
or try a keyword search, such as Aluminum Electrolytic Capacitors
