EKY-350ELL560MF11D - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 35volts 56uF 6.3X11

Download EKY-350ELL560MF11D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKY-350ELL560MF11D - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

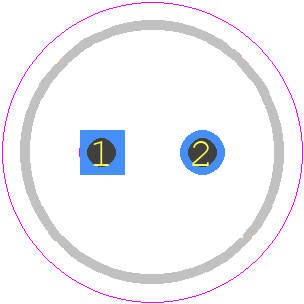

EKY-350ELL560MF11D - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 6.3*11
click to zoom
3D Models
EKY-350ELL560MF11D - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 6.3*11
click to zoom

EKY-350ELL560MF11D Details

  • Manufacturer Part Number:

    EKY-350ELL560MF11D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    0

  • Capacitance:

    56 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.0196 mA

  • Length:

    11 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    136 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Pitch:

    2.5 mm

  • Terminal Shape:

    WIRE

EKY-350ELL560MF11D Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the EKY-350ELL560MF11D is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, and is suitable for use in high-vibration environments.
  • Handle the capacitor by the body, not the leads, and store it in a dry, cool place away from direct sunlight and moisture. Avoid bending or flexing the leads, and do not stack capacitors on top of each other.
  • The ESR of the EKY-350ELL560MF11D is approximately 0.15 ohms at 100kHz, but this value may vary depending on the frequency and operating conditions.
  • The EKY-350ELL560MF11D is rated for operation up to 105°C, but derating is required above 85°C. Consult the datasheet for derating curves and guidelines.
