EKZN500ELL101MHB5D - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 50V 100uF 20% Tol.

Download EKZN500ELL101MHB5D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKZN500ELL101MHB5D - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

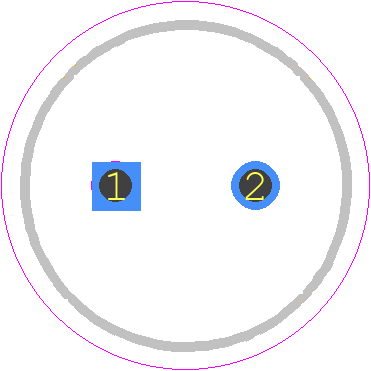

EKZN500ELL101MHB5D - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom
3D Models
EKZN500ELL101MHB5D - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom

EKZN500ELL101MHB5D Details

  • Manufacturer Part Number:

    EKZN500ELL101MHB5D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    0

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.05 mA

  • Length:

    11.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    480 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.1

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

EKZN500ELL101MHB5D Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the EKZN500ELL101MHB5D is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
  • The EKZN500ELL101MHB5D is rated for operation up to 125°C (257°F). While it can tolerate high temperatures, the capacitance and ESR may degrade over time. It's essential to consider the temperature derating factors and consult with Chemi-Con or a qualified engineer for specific guidance.
  • The EKZN500ELL101MHB5D is designed to operate in environments with a relative humidity of up to 95%. However, it's recommended to consider the humidity derating factors and consult with Chemi-Con or a qualified engineer for specific guidance, especially in extremely humid environments.
  • The recommended storage condition for the EKZN500ELL101MHB5D is in a dry, cool place with a temperature range of -10°C to 40°C (14°F to 104°F) and a relative humidity of 60% or less. Avoid storing the capacitor in direct sunlight or near heat sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EKZN500ELL101MHB5D Overview

Use the download button to access the EKZN500ELL101MHB5D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKZN5, or try a keyword search, such as Aluminum Electrolytic Capacitors
