EL0600(TA) - Everlight

Description: Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel CMTI 8-SOP

Download EL0600(TA) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

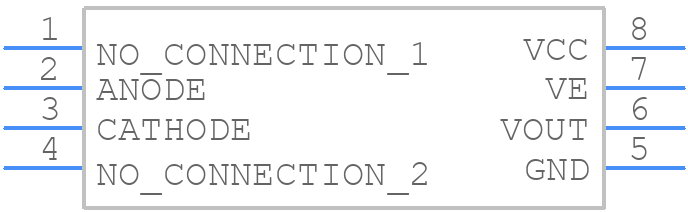

EL0600(TA) - Everlight - PCB symbol
click to zoom
PCB Footprints
EL0600(TA) - Everlight PCB footprint - Other - Other - 8-SOIC (0.154", 3.90mm Width)
click to zoom
3D Models
EL0600(TA) - Everlight - 3D model - Other - 8-SOIC (0.154", 3.90mm Width)
click to zoom

EL0600(TA) Details

  • Manufacturer Part Number:

    EL0600(TA)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER
