Description:The EL4340, EL4342 are fixed unity gain mux amps featuring high slew rates and excellent bandwidth for video switching. These devices feature a high impedance output state (HIZ) that enables the outputs of multiple devices to be wired together. A power-down mode (ENABLE) is included to turn off un-needed circuitry in power sensitive applications. The ENABLE pin, when pulled high, sets the EL4340, EL4342 into standby power mode - consuming just 18mW. An added feature in the EL4340 is a latch enable function
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as thermal throttling or shutdown.
Using a lower input voltage may affect the device's performance, while using a higher input voltage may exceed the maximum rating and cause damage. It's essential to follow the recommended input voltage range to ensure reliable operation.
Renesas provides troubleshooting guides and FAQs on their website, which include steps to identify and resolve common issues. Additionally, engineers can use debugging tools, such as oscilloscopes and logic analyzers, to diagnose problems.
Yes, Renesas provides guidelines for EMI/EMC design considerations, including PCB layout, component selection, and shielding recommendations to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL4340IUZ Overview

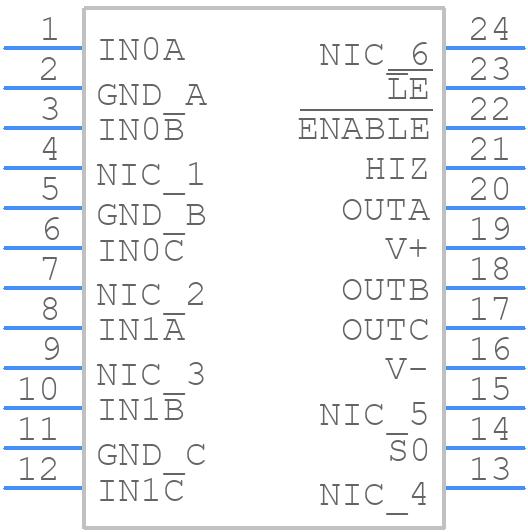

Use the download button to access the EL4340IUZ schematic symbol, PCB footprint, and 3D model.
