EL5177IYZ - Renesas Electronics

Description: The EL5177 is a high bandwidth amplifier with an output in differential form. It is primarily targeted for applications such as driving twisted-pair lines or any application where common mode injection is likely to occur. The input signal can be in either single-ended or differential form but the output is always in differential form. On the EL5177, two feedback inputs provide the user with the ability to set the device gain (stable at a minimum gain of 1). The output common mode level is set by the referen

Download EL5177IYZ Model

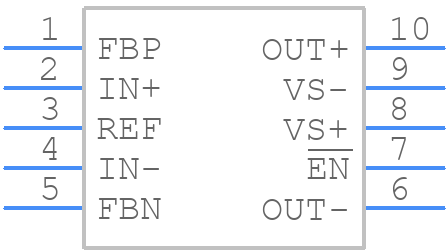

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL5177IYZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 10 Ld MSOP (3.0mm)
click to zoom
3D Models
EL5177IYZ - Renesas Electronics  - 3D model - Small Outline Packages - 10 Ld MSOP (3.0mm)
click to zoom

EL5177IYZ Details

  • Manufacturer Part Number:

    EL5177IYZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    7.2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

EL5177IYZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the EL5177IYZ. Ensure that the input and output stages are separated, and the power supply lines are decoupled. Use a solid ground plane and keep the signal traces short and direct. Refer to the application note 'EL5177IYZ PCB Layout Guidelines' for more information.
  • The EL5177IYZ has a built-in current limiting feature. To handle output current limiting, ensure that the output current is within the specified range (typically 100mA). If the output current exceeds this limit, the device will enter a current-limiting mode, which may affect the output voltage. Use an external current sense resistor to monitor the output current and implement a foldback current limiting scheme if necessary.
  • The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. This ensures stable operation and minimizes input voltage ripple. Avoid using electrolytic capacitors as they may cause oscillations.
  • To ensure stability, follow the recommended PCB layout guidelines, use a sufficient input capacitor, and decouple the power supply lines. Additionally, ensure that the output capacitor value is within the recommended range (typically 10uF to 47uF). Avoid using capacitors with high ESR values, as they can cause oscillations.
  • The EL5177IYZ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
