EL5378IUZ - Renesas Electronics

Description: The EL5178 and EL5378 are single and triple high bandwidth amplifiers with an output in differential form. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form. On the EL5178 and EL5378, two feedback inputs provide the user with the ability to set the gain of each device (stable at minimum gain of 2). The output common mode level for each c

Download EL5378IUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

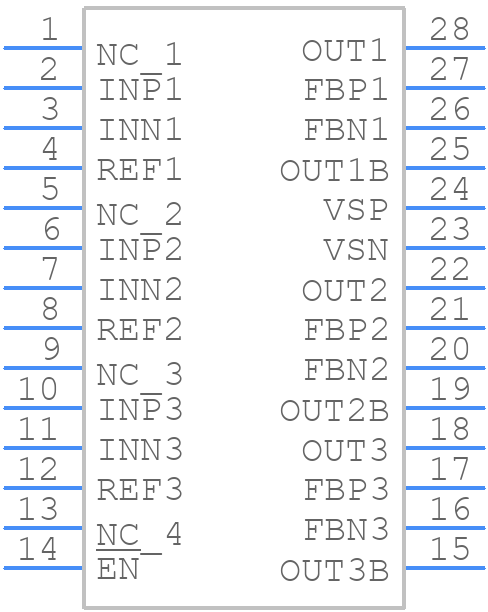

Symbol
EL5378IUZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
EL5378IUZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M28.15-1
click to zoom
3D Models
EL5378IUZ - Renesas Electronics - 3D model - Small Outline Packages - M28.15-1
click to zoom

EL5378IUZ Details

  • Manufacturer Part Number:

    EL5378IUZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Package Description:

    QSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.9 mm

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    6.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

EL5378IUZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the EL5378IUZ. Ensure that the input and output traces are separated, and the power supply lines are decoupled. Use a solid ground plane and keep the analog and digital sections separate. Refer to the application note 'EL5378IUZ PCB Layout Guidelines' for more information.
  • To minimize power consumption, ensure that the input signals are properly terminated, and the output load is optimized. Use the shutdown pin to disable the device when not in use. Additionally, consider using a lower supply voltage and reducing the clock frequency. Refer to the datasheet section 'Power Consumption' for more details.
  • The maximum clock frequency for the EL5378IUZ is 100 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure optimal performance and minimize power consumption.
  • The EL5378IUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid placing components that generate heat near the EL5378IUZ.
  • The recommended input signal amplitude is 1 Vpp to 2 Vpp, and the frequency range is DC to 100 kHz. However, the device can handle input signals up to 500 kHz with some degradation in performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL5378IUZ Overview

Use the download button to access the EL5378IUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL537, or try a keyword search, such as Line Driver or Receivers
