ELH108M100AQ2AA - Yageo Group

Description: ELH, Aluminum, Aluminum Electrolytic, 1,000 uF, 20%, 100 VDC, -40/ +85°C, 10 mm

Download ELH108M100AQ2AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELH108M100AQ2AA - Yageo Group - PCB symbol
click to zoom
PCB Footprints

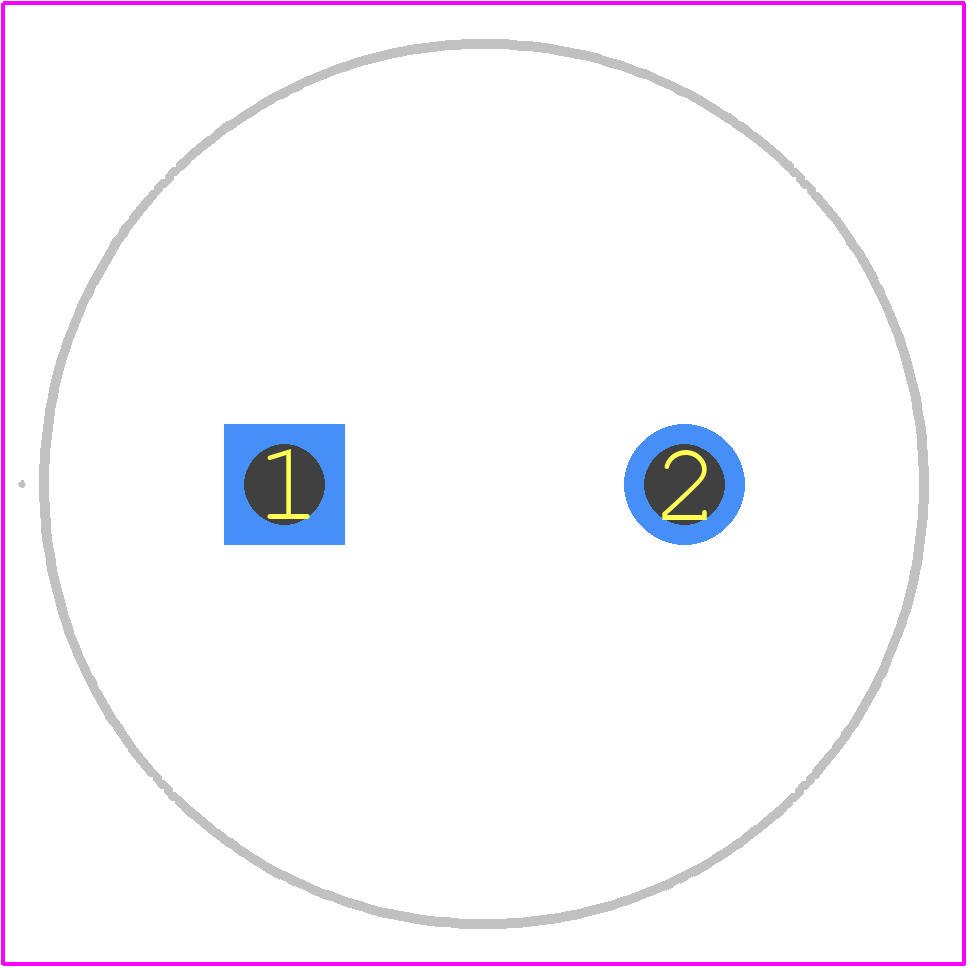

ELH108M100AQ2AA - Yageo Group PCB footprint - Other - Other - ELH108M100AQ2AA-1
click to zoom
3D Models
ELH108M100AQ2AA - Yageo Group - 3D model - Other - ELH108M100AQ2AA-1
click to zoom

ELH108M100AQ2AA Details

  • Manufacturer Part Number:

    ELH108M100AQ2AA

  • Manufacturer:

    YAGEO Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELH108M100AQ2AA Overview

Use the download button to access the ELH108M100AQ2AA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELH10, or try a keyword search, such as Aluminum Electrolytic Capacitors
