SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max:
2 mA
Supply Voltage-Max:
14 V
Supply Voltage-Min:
3.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.04 µs
Turn-on Time:
0.04 µs
Width:
3 mm
EMB1412MYE/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUAAC4, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-vibration environments, it is recommended to follow the guidelines in the Texas Instruments application note SLUAAC5, which provides information on component selection, PCB design, and assembly techniques to minimize the effects of vibration.
The recommended soldering conditions for the EMB1412MYE/NOPB are outlined in the Texas Instruments application note SLUAAC3, which provides guidelines for reflow soldering, wave soldering, and hand soldering to ensure reliable assembly.
Texas Instruments provides a troubleshooting guide in the application note SLUAAC6, which includes a step-by-step approach to identifying and resolving common issues with the EMB1412MYE/NOPB, including overheating, malfunction, and other problems.
When using the EMB1412MYE/NOPB in a high-reliability or safety-critical application, it is essential to follow the guidelines in the Texas Instruments application note SLUAAC7, which provides information on fault tolerance, error detection, and correction, as well as guidelines for designing and testing safety-critical systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EMB1412MYE/NOPB Overview

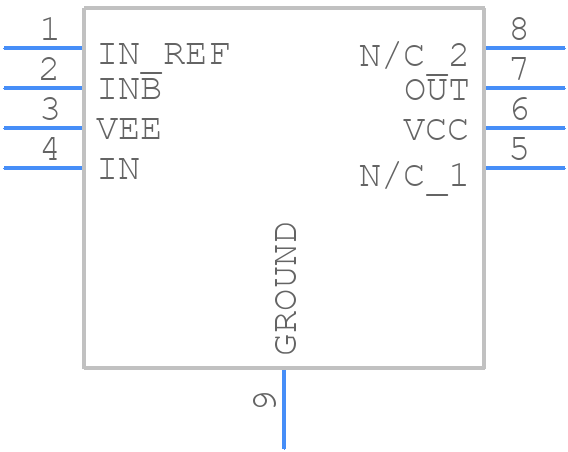

Use the download button to access the EMB1412MYE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMB14,
or try a keyword search, such as MOSFET Drivers
