EMB1499QMH/NOPB - Texas Instruments

Description: Bidirectional Current DC/DC Controller

Download EMB1499QMH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

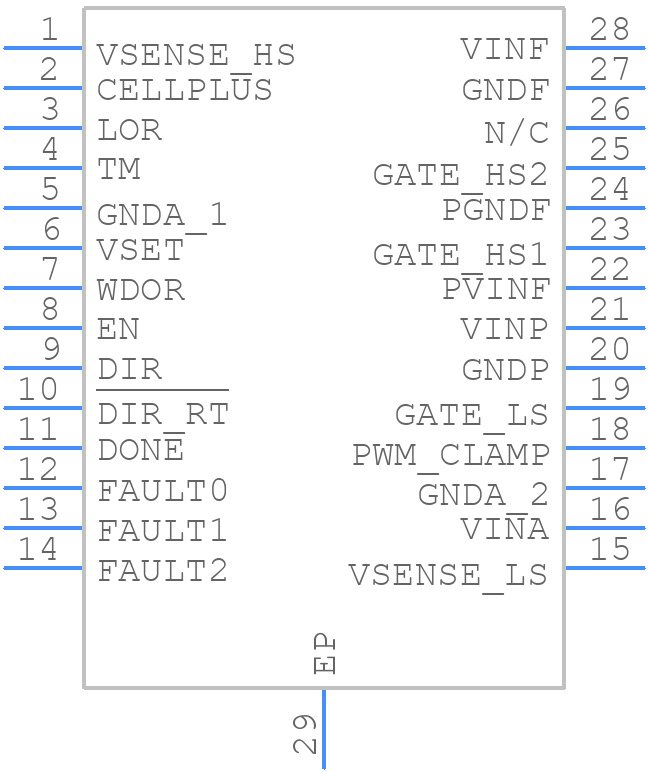

EMB1499QMH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
EMB1499QMH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028A
click to zoom
3D Models
EMB1499QMH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0028A
click to zoom

EMB1499QMH/NOPB Details

  • Manufacturer Part Number:

    EMB1499QMH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    290 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    V

  • Width:

    4.4 mm

EMB1499QMH/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to improve heat dissipation. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal conduction to the PCB.
  • Texas Instruments recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF for the input and output capacitors. The capacitor's ESR should be less than 100mΩ to ensure stable operation.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correctness. Ensure that the output voltage is within the specified range and that the feedback resistors are properly connected.
  • Texas Instruments recommends a soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds. The device should be soldered using a reflow soldering process with a nitrogen atmosphere to prevent oxidation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMB1499QMH/NOPB Overview

Use the download button to access the EMB1499QMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMB14, or try a keyword search, such as Other Signal Circuits

About Texas Instruments
