EMD22FHAT2R - ROHM Semiconductor

Description: ROHM - EMD22FHAT2R - RF TRANSISTOR, AEC-Q101, NPN/PNP, 50V

Download EMD22FHAT2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

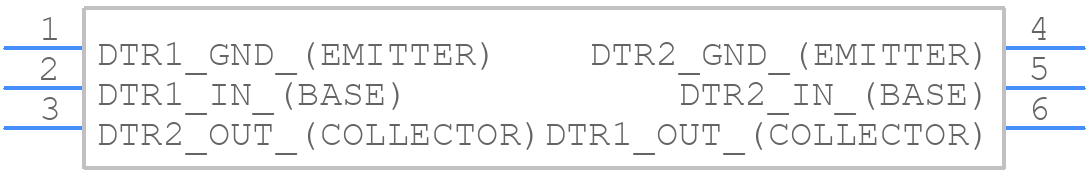

EMD22FHAT2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMD22FHAT2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom
3D Models
EMD22FHAT2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom

EMD22FHAT2R Details

  • Manufacturer Part Number:

    EMD22FHAT2R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-107C, 6 PIN

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 10

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

EMD22FHAT2R Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 125°C). Use a heat sink or thermal interface material to reduce thermal resistance. Avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • Handle the device by the body, avoiding touching the pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent ESD damage.
  • Check the power supply voltage and ensure it is within the recommended range. Verify that the input voltage is stable and free of noise. Check for proper pin connections and ensure that the device is not damaged or counterfeit.
  • Use a multi-layer PCB with a solid ground plane to reduce EMI. Keep the device away from high-frequency components and use shielding or filtering to minimize radiation. Follow good PCB design practices, such as minimizing trace lengths and using decoupling capacitors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMD22FHAT2R Overview

Use the download button to access the EMD22FHAT2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMD22, or try a keyword search, such as Small Signal Bipolar Transistors
