EMD22T2R - ROHM Semiconductor

Description: NPN+PNP, SOT-563, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download EMD22T2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

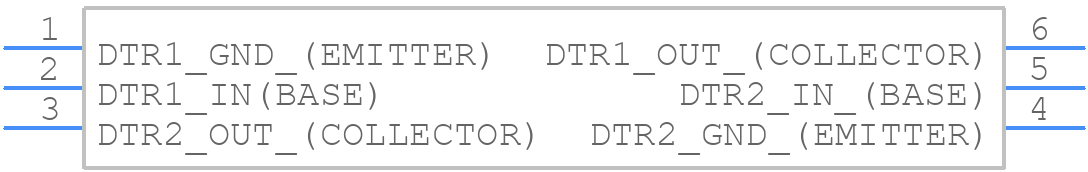

EMD22T2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMD22T2R - ROHM Semiconductor PCB footprint - Other - Other - EMX1 SOT-563 (EMT6)
click to zoom
3D Models
EMD22T2R - ROHM Semiconductor - 3D model - Other - EMX1 SOT-563 (EMT6)
click to zoom

EMD22T2R Details

  • Manufacturer Part Number:

    EMD22T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-107

  • Package Description:

    ROHS COMPLIANT, EMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 10

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz
