EMD2FHAT2R - ROHM Semiconductor

Description: Bipolar Transistors - Pre-Biased NPN+PNP SOT-563 50V VCC 0.1A IC

Download EMD2FHAT2R Model

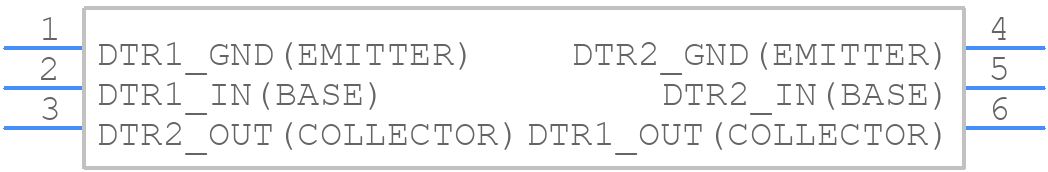

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EMD2FHAT2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 SC-107C (EMT6)
click to zoom
3D Models
EMD2FHAT2R - ROHM Semiconductor  - 3D model - SO Transistor Flat Lead - SOT-563 SC-107C (EMT6)
click to zoom

EMD2FHAT2R Details

  • Manufacturer Part Number:

    EMD2FHAT2R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 1.0

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    56

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

EMD2FHAT2R Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet, and ensuring the device is operated within the specified temperature range. Additionally, consider using a heat sink or thermal interface material to reduce junction temperature.
  • While the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage may cause permanent damage to the device.
  • Yes, EMD2FHAT2R is suitable for high-frequency switching applications up to 1MHz. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure the system is designed to minimize electromagnetic interference (EMI).
  • ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring the device is stored in an anti-static package. Additionally, consider implementing ESD protection circuits in the system design.
