EMD9FHAT2R - ROHM Semiconductor

Description: ROHM - EMD9FHAT2R - TRANS, NPN/PNP, 50V, SOT-563

Download EMD9FHAT2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

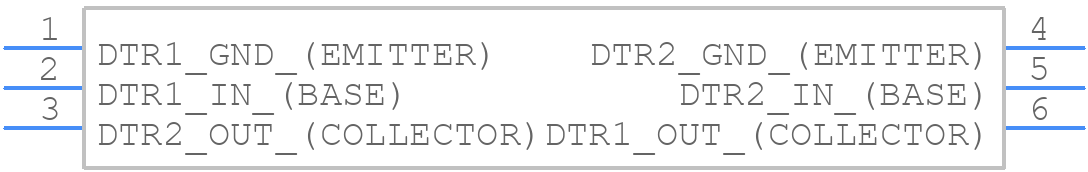

EMD9FHAT2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMD9FHAT2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom
3D Models
EMD9FHAT2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom

EMD9FHAT2R Details

  • Manufacturer Part Number:

    EMD9FHAT2R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    68

  • JESD-30 Code:

    R-PDSO-F6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

EMD9FHAT2R Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the EMD9FHAT2R to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a low ESR (Equivalent Series Resistance) and a high capacitance value (e.g. 10uF or higher) at the output of the EMD9FHAT2R. Additionally, the input capacitor should also be selected carefully to ensure stability.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V or less to ensure reliable operation and to prevent damage to the device.
  • To protect the EMD9FHAT2R from overcurrent and overheating, it is recommended to add overcurrent protection (OCP) and overvoltage protection (OVP) circuits in the design. Additionally, thermal monitoring and shutdown circuits can be implemented to prevent overheating.
  • The recommended input capacitor value is 1uF to 10uF, and the type should be a low-ESR ceramic capacitor (e.g. X5R or X7R) to ensure stable operation and to prevent oscillations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMD9FHAT2R Overview

Use the download button to access the EMD9FHAT2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMD9F, or try a keyword search, such as Small Signal Bipolar Transistors
