EMZ1T2R - ROHM Semiconductor

Description: NPN+PNP, SOT-563, General Purpose Amplification Transistor

Download EMZ1T2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

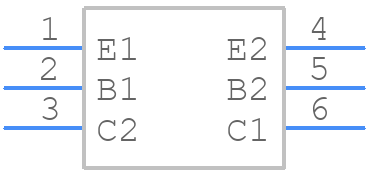

EMZ1T2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
EMZ1T2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom
3D Models
EMZ1T2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - SOT-563 (EMT6)
click to zoom

EMZ1T2R Details

  • Manufacturer Part Number:

    EMZ1T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-107

  • Package Description:

    EMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.15 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    120

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    180 MHz

EMZ1T2R Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to ROHM's application note for detailed guidelines.
  • To ensure stable output voltage regulation, it's essential to decouple the input and output with ceramic capacitors (e.g., 10uF and 22uF, respectively). Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the regulator's performance and stability.
  • While the EMZ1T2R is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult ROHM's application note for guidance on high-temperature applications.
  • Implement overcurrent protection (OCP) and short-circuit protection (SCP) using external components, such as a current sense resistor and a fuse. ROHM recommends a maximum current limit of 1.5A for the EMZ1T2R.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMZ1T2R Overview

Use the download button to access the EMZ1T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMZ1T, or try a keyword search, such as Small Signal Bipolar Transistors
