EMZA350ARA470MF61G - Chemi-Con

Description: Cap Aluminum Lytic 47uF 35V 20% (6.3 X 5.8mm) SMD 240mA 2000h 105°C Automotive AEC-Q200 T/R

Download EMZA350ARA470MF61G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EMZA350ARA470MF61G - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

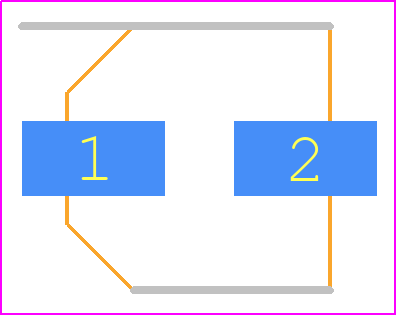

EMZA350ARA470MF61G - Chemi-Con PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - F61
click to zoom
3D Models
EMZA350ARA470MF61G - Chemi-Con - 3D model - Capacitor Al Electrolytic - F61
click to zoom

EMZA350ARA470MF61G Details

  • Manufacturer Part Number:

    EMZA350ARA470MF61G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.8 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.01645 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    96 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

EMZA350ARA470MF61G Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The ESR of the EMZA350ARA470MF61G capacitor decreases with increasing frequency. According to Chemi-Con's application notes, the ESR at 100 kHz is approximately 30-40% of the ESR at 100 Hz.
  • The maximum ripple current rating for the EMZA350ARA470MF61G capacitor is not explicitly stated in the datasheet. However, according to Chemi-Con's application notes, the ripple current rating can be calculated using the formula: Irms = √(ΔV^2 / (ESR * f)), where ΔV is the voltage ripple, ESR is the equivalent series resistance, and f is the frequency.
  • The EMZA350ARA470MF61G capacitor has a maximum operating temperature of 105°C, making it suitable for use in high-temperature environments. However, it's essential to ensure that the capacitor is properly derated for voltage and ripple current to prevent overheating and premature failure.
  • Chemi-Con recommends a PCB layout and land pattern that minimizes the distance between the capacitor's terminals and the power supply lines to reduce parasitic inductance and ensure optimal performance. A recommended land pattern is typically provided in the capacitor's datasheet or application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EMZA350ARA470MF61G Overview

Use the download button to access the EMZA350ARA470MF61G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EMZA3, or try a keyword search, such as Aluminum Electrolytic Capacitors
