Part Image

EP1C12Q240C8N - Intel

Description: Cyclone Devices

Download EP1C12Q240C8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

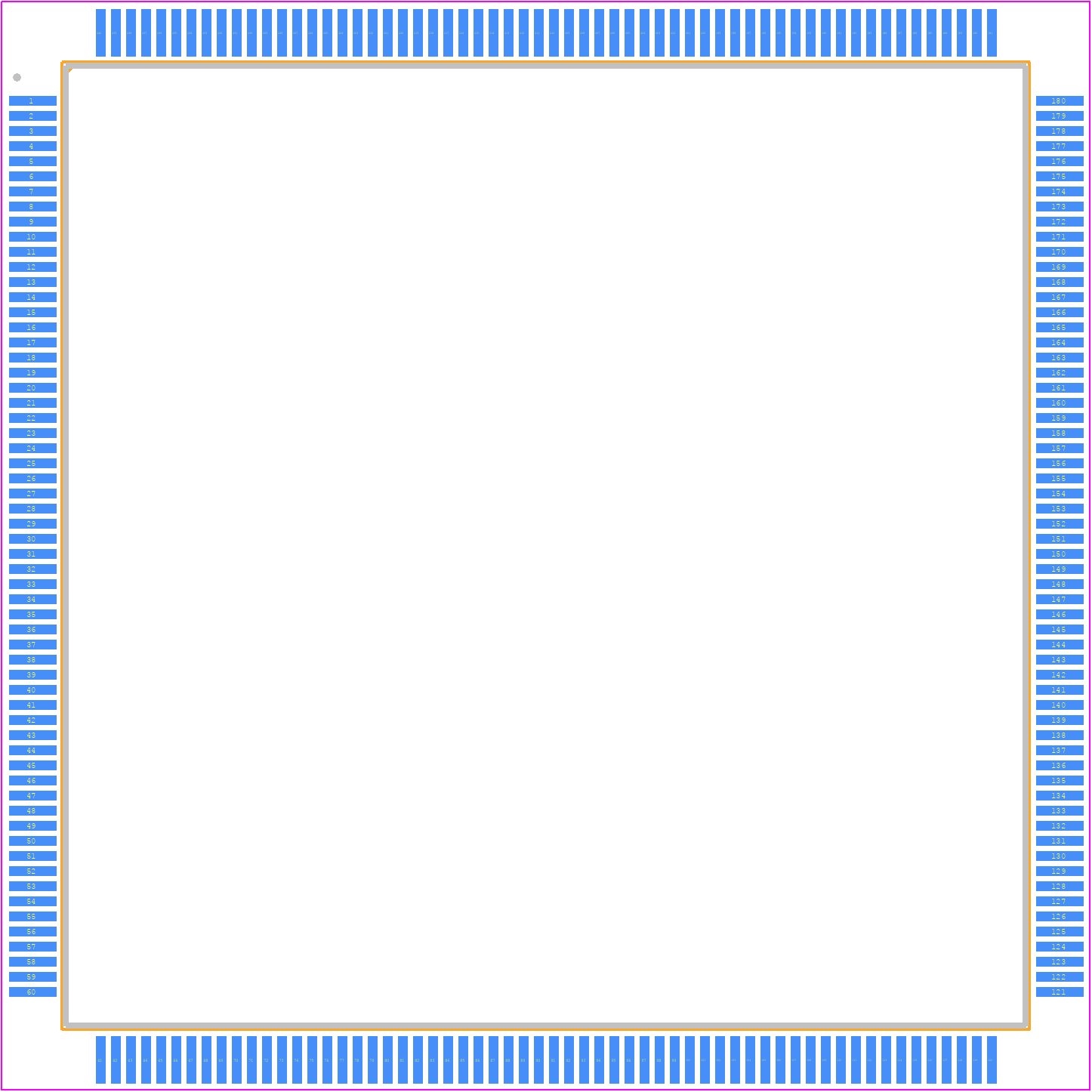

EP1C12Q240C8N - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP 240
click to zoom
3D Models
EP1C12Q240C8N - Intel  - 3D model - Quad Flat Packages - PQFP 240
click to zoom

EP1C12Q240C8N Details

  • Manufacturer Part Number:

    EP1C12Q240C8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFP-240

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    275 MHz

  • JESD-30 Code:

    S-PQFP-G240

  • JESD-609 Code:

    e3

  • Length:

    32 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1206

  • Number of Inputs:

    173

  • Number of Logic Cells:

    12060

  • Number of Outputs:

    173

  • Number of Terminals:

    240

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1206 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP240,1.3SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    32 mm

EP1C12Q240C8N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP1C12Q240C8N is -40°C to 100°C.
  • To implement a clock domain crossing (CDC) in the EP1C12Q240C8N, you need to use a synchronizer circuit or a FIFO-based CDC. The synchronizer circuit uses a pair of flip-flops to resynchronize the signal, while the FIFO-based CDC uses a first-in-first-out (FIFO) buffer to transfer data between clock domains.
  • The maximum frequency of operation for the EP1C12Q240C8N is 250 MHz.
  • To optimize the power consumption of the EP1C12Q240C8N, you can use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). You can also use the Intel Quartus II software to optimize power consumption during the design process.
  • The maximum current consumption of the EP1C12Q240C8N is 1.5 A.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP1C12Q240C8N Overview

Use the download button to access the EP1C12Q240C8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP1C1, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to EP1C12Q240C8N

Showing 0 results

EP1C12Q240C8N Alternates

Showing results

Image Part Number Model
Part Image EP1C12Q240C8 Altera Corporation

Field Programmable Gate Array, 1206 CLBS, 275MHz, 12060-Cell, PQFP240

Part Image EP1C12Q240I8ES Altera Corporation

Field Programmable Gate Array, 12060 CLBs, 275MHz, PQFP240

Part Image EP1C12Q240C8ES Altera Corporation

Field Programmable Gate Array, 12060 CLBs, 275MHz, PQFP240

Part Image EP1C12Q240I8 Intel Corporation

Field Programmable Gate Array, 1206 CLBS, 275MHz, 12060-Cell, PQFP240

Part Image EP1C12Q240C8ES Intel Corporation

Field Programmable Gate Array, 12060 CLBs, 275MHz, PQFP240

For a full list of alternate parts for EP1C12Q240C8N, check out Findchips.com
