EP1C4F400C8N - Intel

Description: Cyclone Devices

Download EP1C4F400C8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

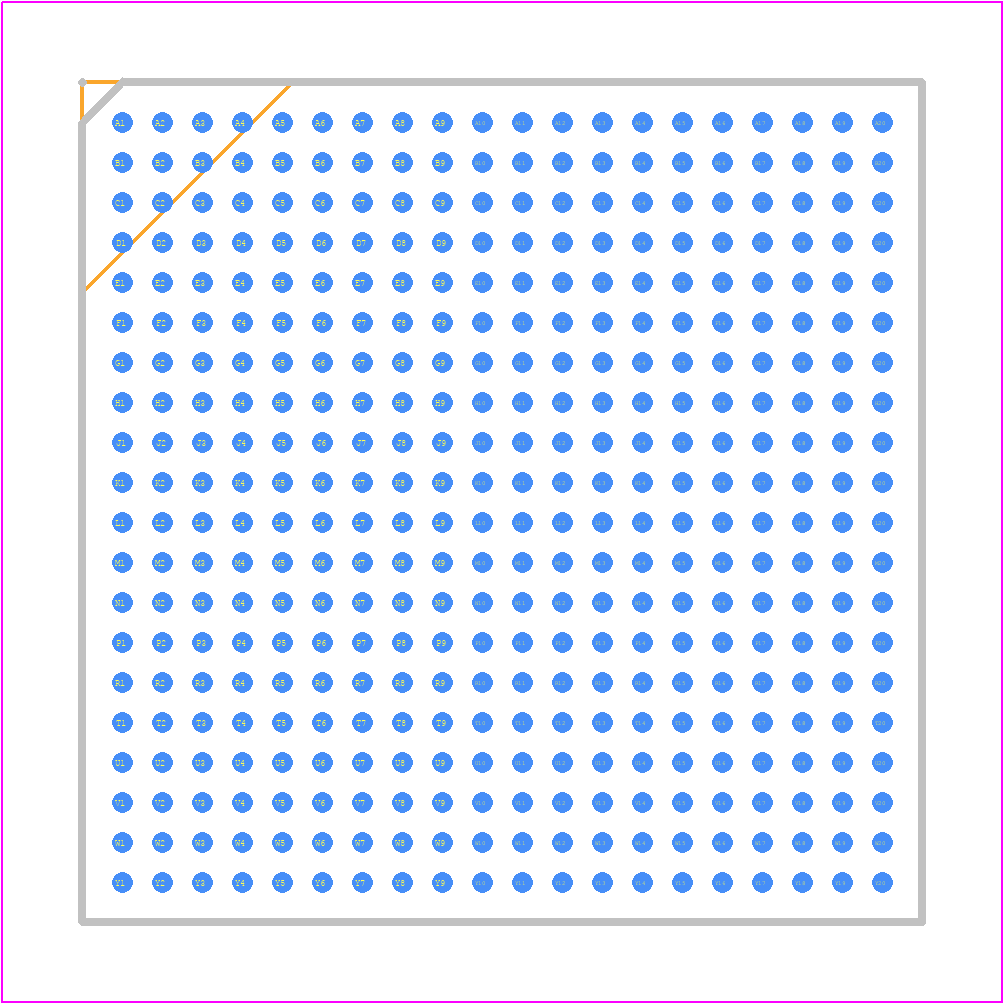

EP1C4F400C8N - Intel PCB footprint - BGA - BGA - 400-Pin FineLine Ball-Grid Array (FBGA)
click to zoom
3D Models
EP1C4F400C8N - Intel  - 3D model - BGA - 400-Pin FineLine Ball-Grid Array (FBGA)
click to zoom

EP1C4F400C8N Details

  • Manufacturer Part Number:

    EP1C4F400C8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FBGA-400

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    275 MHz

  • JESD-30 Code:

    S-PBGA-B400

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    400

  • Number of Inputs:

    301

  • Number of Logic Cells:

    4000

  • Number of Outputs:

    301

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Organization:

    400 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA400,20X20,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    21 mm

EP1C4F400C8N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP1C4F400C8N is -40°C to 100°C.
  • To implement a clock domain crossing (CDC) in the EP1C4F400C8N, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.
  • The maximum frequency supported by the EP1C4F400C8N is 250 MHz.
  • To optimize power consumption in the EP1C4F400C8N, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • The maximum current rating for the EP1C4F400C8N is 1.5 A.
