EP1C6Q240C8N - Intel

Description: IC CYCLONE FPGA

Download EP1C6Q240C8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

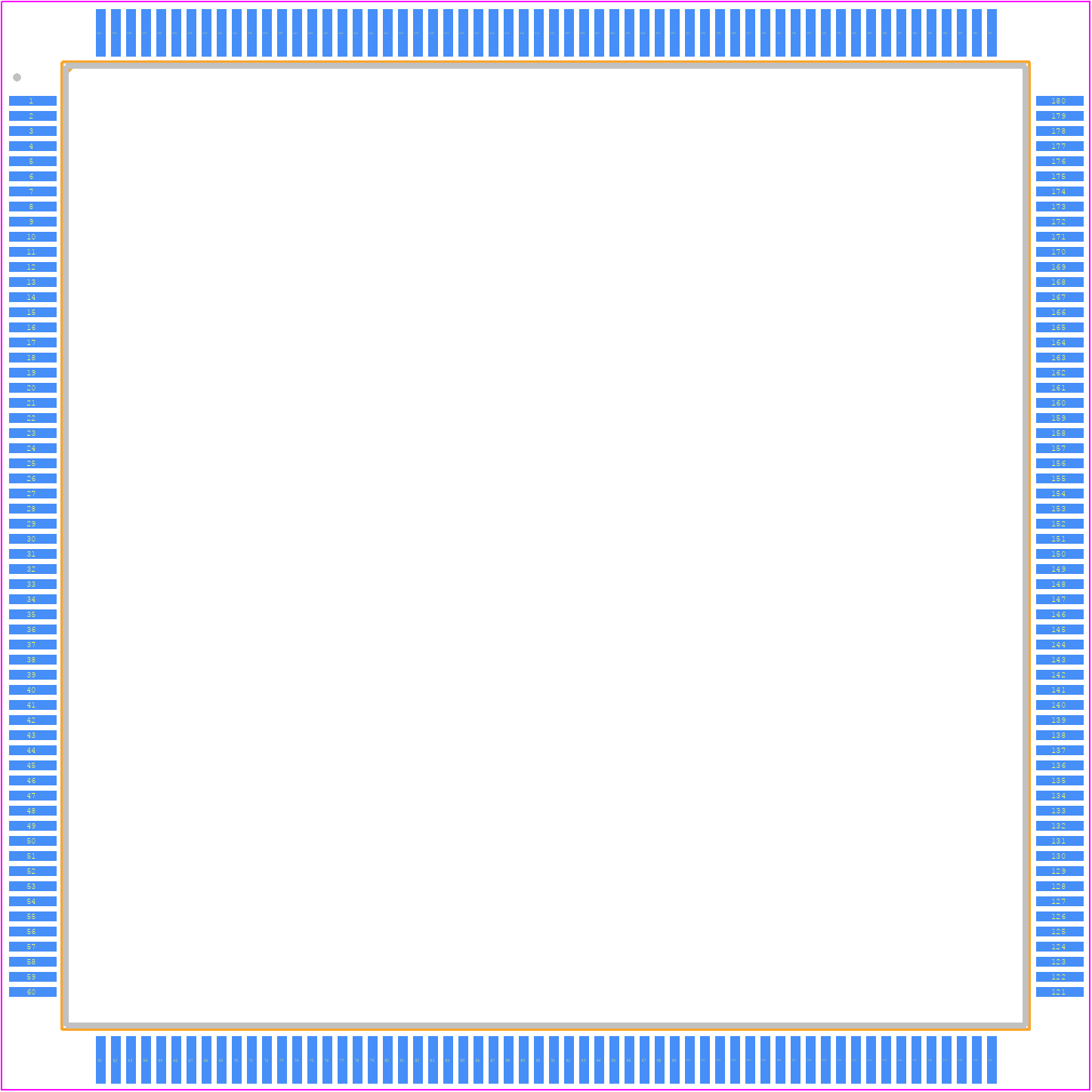

PCB Footprints
EP1C6Q240C8N - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - EP1C6Q240C8N
click to zoom
3D Models
EP1C6Q240C8N - Intel  - 3D model - Quad Flat Packages - EP1C6Q240C8N
click to zoom

EP1C6Q240C8N Details

  • Manufacturer Part Number:

    EP1C6Q240C8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFP-240

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    275 MHz

  • JESD-30 Code:

    S-PQFP-G240

  • JESD-609 Code:

    e3

  • Length:

    32 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    598

  • Number of Inputs:

    185

  • Number of Logic Cells:

    5980

  • Number of Outputs:

    185

  • Number of Terminals:

    240

  • Operating Temperature-Max:

    85 °C

  • Organization:

    598 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP240,1.3SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    32 mm

EP1C6Q240C8N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP1C6Q240C8N is -40°C to 100°C.
  • To implement a clock domain crossing (CDC) in the EP1C6Q240C8N, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.
  • The recommended power-up sequence for the EP1C6Q240C8N is to apply power to the VCCINT and VCCA pins simultaneously, followed by the configuration clock (CCLK) and then the data inputs.
  • To optimize timing closure for the EP1C6Q240C8N, use the Intel Quartus II software to analyze and optimize the design's timing constraints, and consider using pipelining, retiming, and clock domain crossing techniques.
  • The maximum current draw for the EP1C6Q240C8N is 1.5 A for the VCCINT pin and 0.5 A for the VCCA pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP1C6Q240C8N Overview

Use the download button to access the EP1C6Q240C8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP1C6, or try a keyword search, such as Field Programmable Gate Arrays
