EP2AGX260FF35I3N - Intel

Description: IC FPGA 612 I/O 1152FBGA

Download EP2AGX260FF35I3N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP2AGX260FF35I3N - Intel - PCB symbol
click to zoom
PCB Footprints

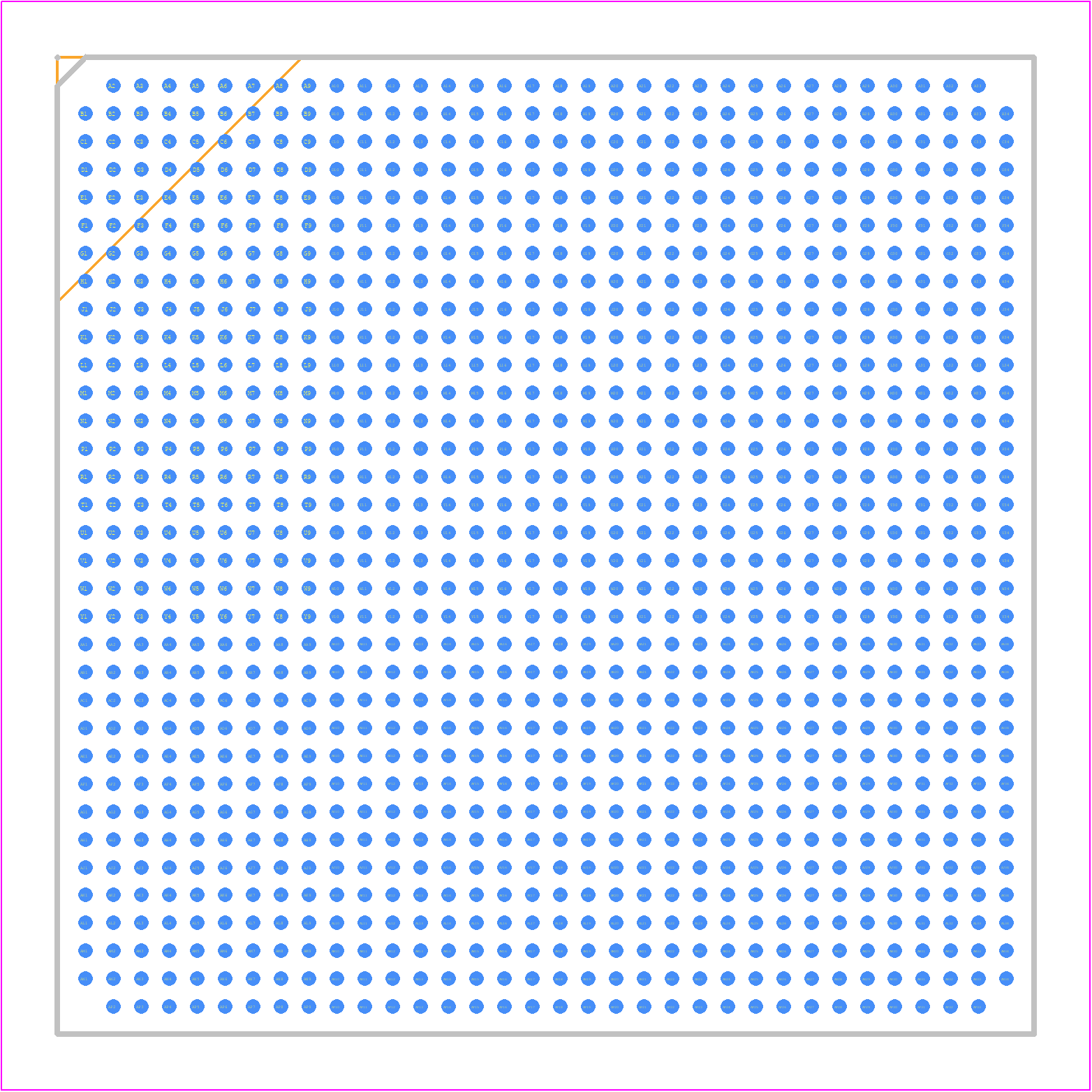

EP2AGX260FF35I3N - Intel PCB footprint - BGA - BGA - EP2AGX260FF35I3N
click to zoom
3D Models
EP2AGX260FF35I3N - Intel - 3D model - BGA - EP2AGX260FF35I3N
click to zoom

EP2AGX260FF35I3N Details

  • Manufacturer Part Number:

    EP2AGX260FF35I3N

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    35 X 35 MM, LEAD FREE, MS-034, FBGA-1152

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B1152

  • JESD-609 Code:

    e1

  • Length:

    35 mm

  • Number of CLBs:

    10260

  • Number of Inputs:

    612

  • Number of Logic Cells:

    244188

  • Number of Outputs:

    612

  • Number of Terminals:

    1152

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    10260 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Equivalence Code:

    BGA1152,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    40 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    35 mm

EP2AGX260FF35I3N Frequently Asked Questions (FAQs)

  • The maximum power consumption of EP2AGX260FF35I3N is approximately 25W, but it can vary depending on the specific use case and operating conditions.
  • To optimize the performance of EP2AGX260FF35I3N, ensure proper cooling, use the optimal clock frequency, and optimize the design for parallel processing. Additionally, use Intel's optimization tools and guidelines to maximize performance.
  • The maximum operating temperature of EP2AGX260FF35I3N is 100°C (212°F), but it's recommended to operate within a temperature range of 0°C to 85°C (32°F to 185°F) for optimal performance and reliability.
  • Yes, EP2AGX260FF35I3N is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its rugged design and ability to operate in harsh environments.
  • To ensure the security of your design using EP2AGX260FF35I3N, implement secure boot mechanisms, use encryption and secure communication protocols, and follow Intel's security guidelines and recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP2AGX260FF35I3N Overview

Use the download button to access the EP2AGX260FF35I3N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2AG, or try a keyword search, such as Field Programmable Gate Arrays
