EP2AGX45DF25C6N - Intel

Description: IC FPGA 252 I/O 572FBGA

Download EP2AGX45DF25C6N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

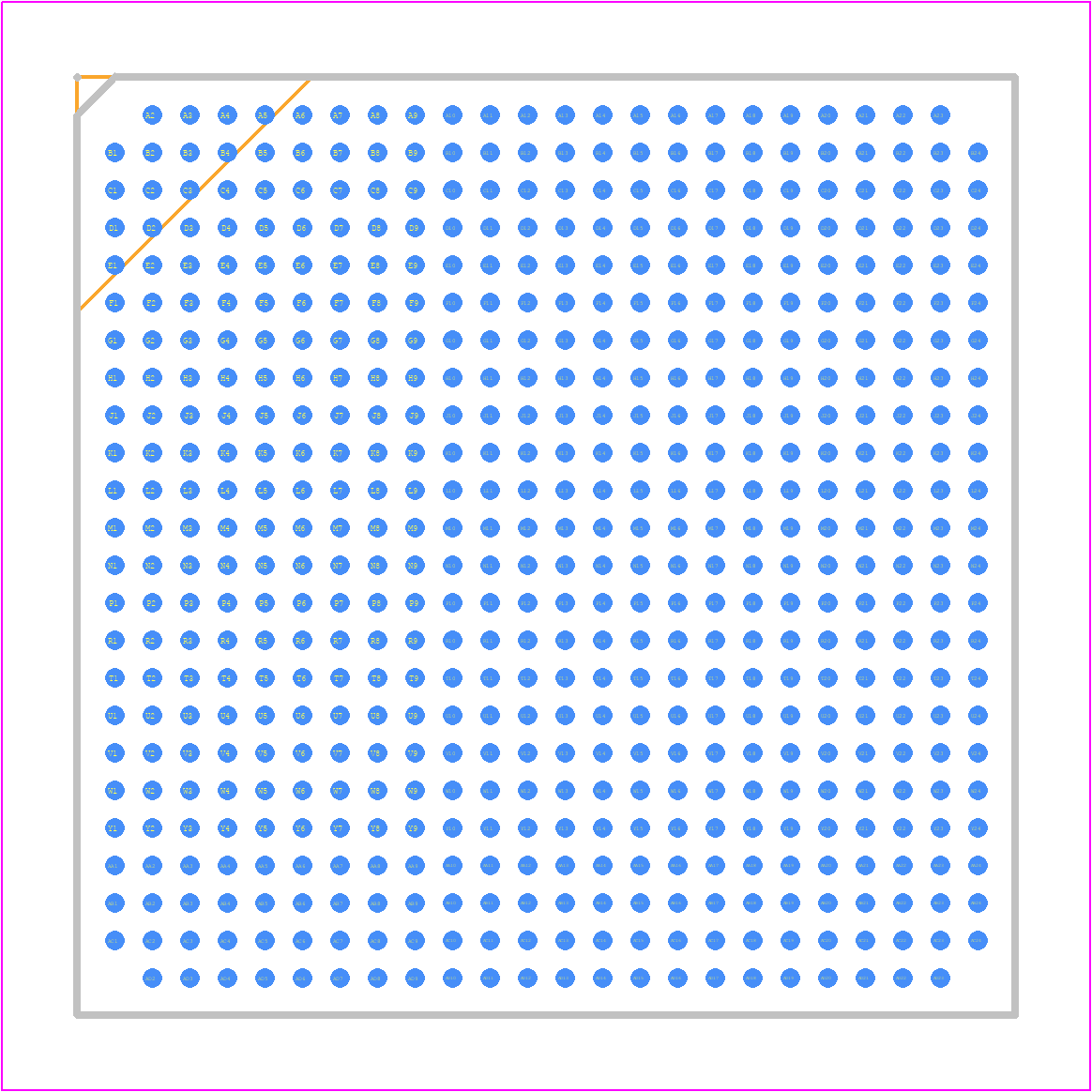

EP2AGX45DF25C6N - Intel PCB footprint - BGA - BGA - EP2AGX45
click to zoom
3D Models
EP2AGX45DF25C6N - Intel  - 3D model - BGA - EP2AGX45
click to zoom

EP2AGX45DF25C6N Details

  • Manufacturer Part Number:

    EP2AGX45DF25C6N

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    25 X 25 MM, LEAD FREE, MS-034, FBGA-572

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B572

  • JESD-609 Code:

    e1

  • Length:

    25 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1805

  • Number of Inputs:

    260

  • Number of Logic Cells:

    42959

  • Number of Outputs:

    260

  • Number of Terminals:

    572

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1805 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Equivalence Code:

    BGA572,24X24,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    40 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    25 mm

EP2AGX45DF25C6N Frequently Asked Questions (FAQs)

  • The maximum power consumption of EP2AGX45DF25C6N is approximately 25W, but it can vary depending on the specific use case and operating conditions.
  • To optimize thermal design, ensure good airflow around the device, use a heat sink with a thermal interface material, and consider using a fan or other cooling solutions. Intel also provides thermal design guidelines in the datasheet.
  • Intel provides a recommended PCB layout and stackup in the datasheet, which includes guidelines for signal integrity, power integrity, and thermal management. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • To mitigate signal integrity and EMI issues, use controlled impedance routing, add decoupling capacitors, and implement EMI shielding. Intel also provides guidelines for signal integrity and EMI mitigation in the datasheet.
  • The recommended operating conditions for EP2AGX45DF25C6N include an operating temperature range of 0°C to 100°C, a voltage supply range of 0.95V to 1.05V, and a clock frequency range of 50 MHz to 500 MHz.
