EP2AGX95DF25I5 - Intel

Description: IC FPGA 260 I/O 572FBGA

Download EP2AGX95DF25I5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EP2AGX95DF25I5 - Intel - PCB symbol
click to zoom
PCB Footprints

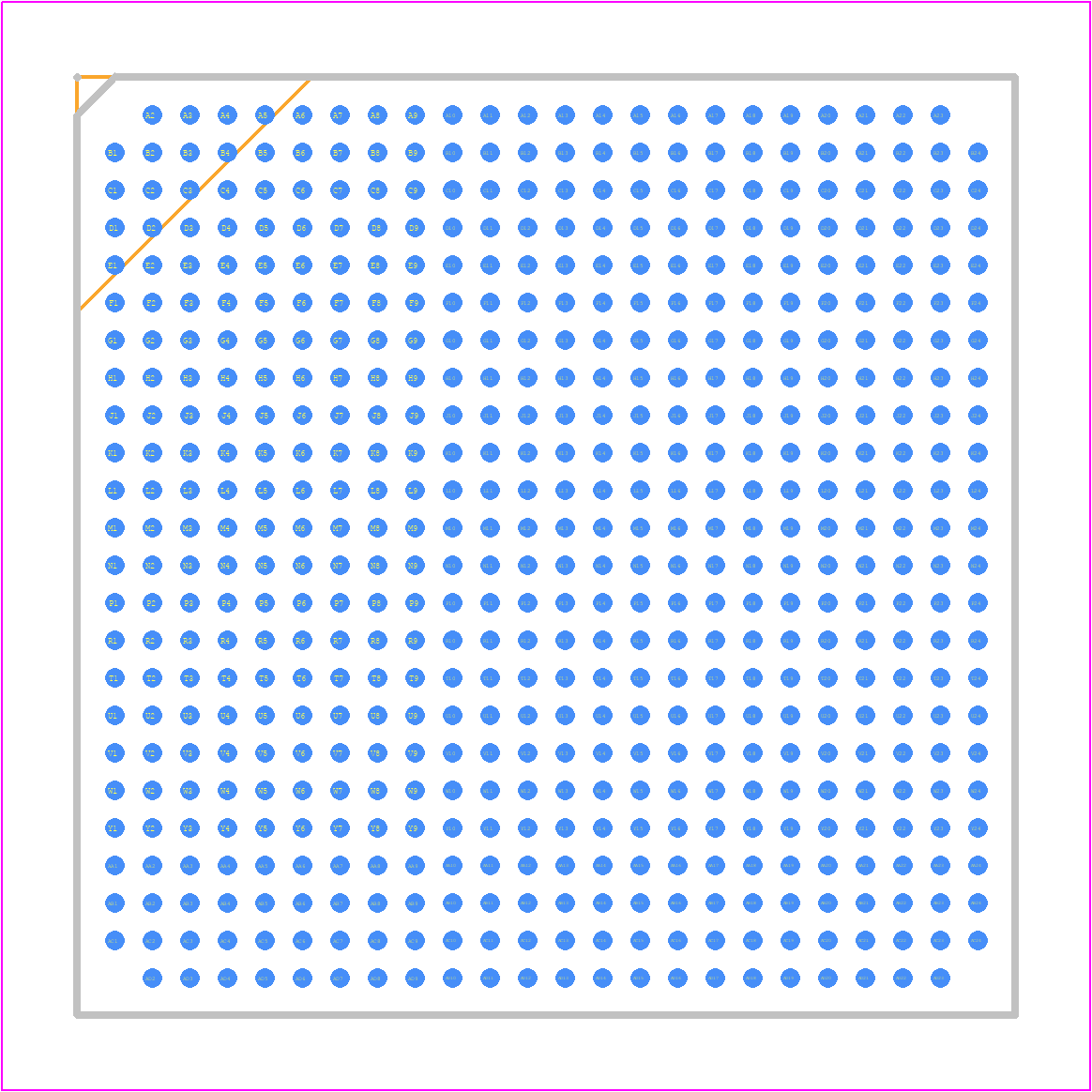

EP2AGX95DF25I5 - Intel PCB footprint - BGA - BGA - 572-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Lidless - A:2.20
click to zoom
3D Models
EP2AGX95DF25I5 - Intel - 3D model - BGA - 572-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Lidless - A:2.20
click to zoom

EP2AGX95DF25I5 Details

  • Manufacturer Part Number:

    EP2AGX95DF25I5

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FBGA-572

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B572

  • Length:

    25 mm

  • Number of Inputs:

    260

  • Number of Logic Cells:

    89178

  • Number of Outputs:

    260

  • Number of Terminals:

    572

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    3747 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA572,24X24,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 40 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    25 mm

EP2AGX95DF25I5 Frequently Asked Questions (FAQs)
