EP2C20F256I8N - Intel

Description: IC CYCLONE II FPGA

Download EP2C20F256I8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

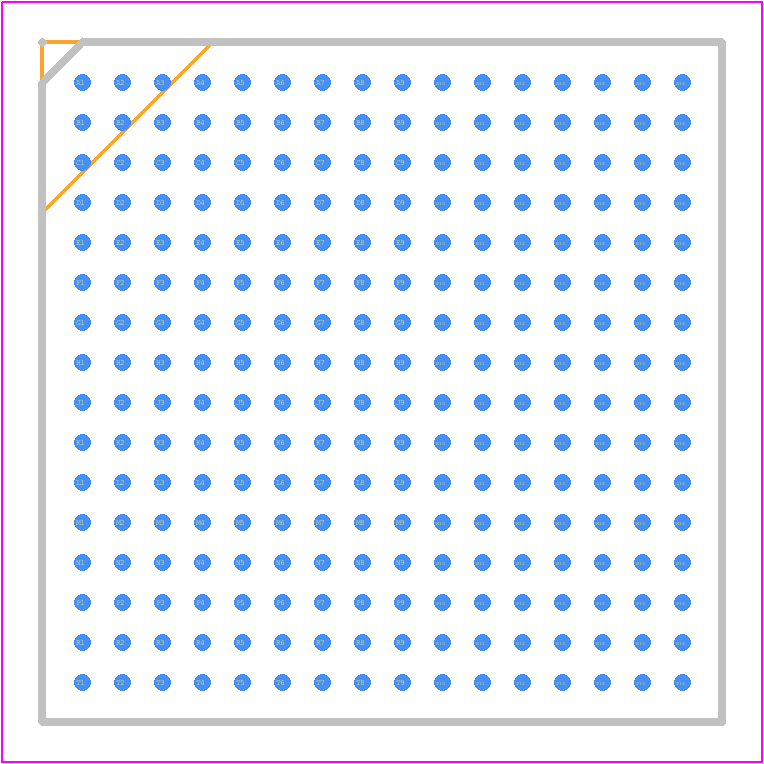

EP2C20F256I8N - Intel PCB footprint - BGA - BGA - 256-Pin FineL--ine Ball-Grid Array (FBGA), Option 2—Thin—Wire Bond
click to zoom
3D Models
EP2C20F256I8N - Intel  - 3D model - BGA - 256-Pin FineL--ine Ball-Grid Array (FBGA), Option 2—Thin—Wire Bond
click to zoom

EP2C20F256I8N Details

  • Manufacturer Part Number:

    EP2C20F256I8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    LEAD FREE, FBGA-256

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRES 3.3 SUPPLY

  • Clock Frequency-Max:

    402.5 MHz

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1172

  • Number of Inputs:

    152

  • Number of Logic Cells:

    18752

  • Number of Outputs:

    136

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1172 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 90 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

EP2C20F256I8N Frequently Asked Questions (FAQs)

  • The maximum operating frequency of EP2C20F256I8N is 260 MHz.
  • EP2C20F256I8N has 20,060 logic elements (LEs).
  • The total memory available in EP2C20F256I8N is 256 KB of RAM and 1,152 KB of ROM.
  • Yes, EP2C20F256I8N supports partial reconfiguration, which allows for dynamic reconfiguration of the FPGA during runtime.
  • The power consumption of EP2C20F256I8N varies depending on the application and operating frequency, but the typical power consumption is around 1.2 W.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

EP2C20F256I8N Overview

Use the download button to access the EP2C20F256I8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2C2, or try a keyword search, such as Field Programmable Gate Arrays
