EP2S180F1020C3N - Intel

Description: FPGA, STRATIX II

Download EP2S180F1020C3N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

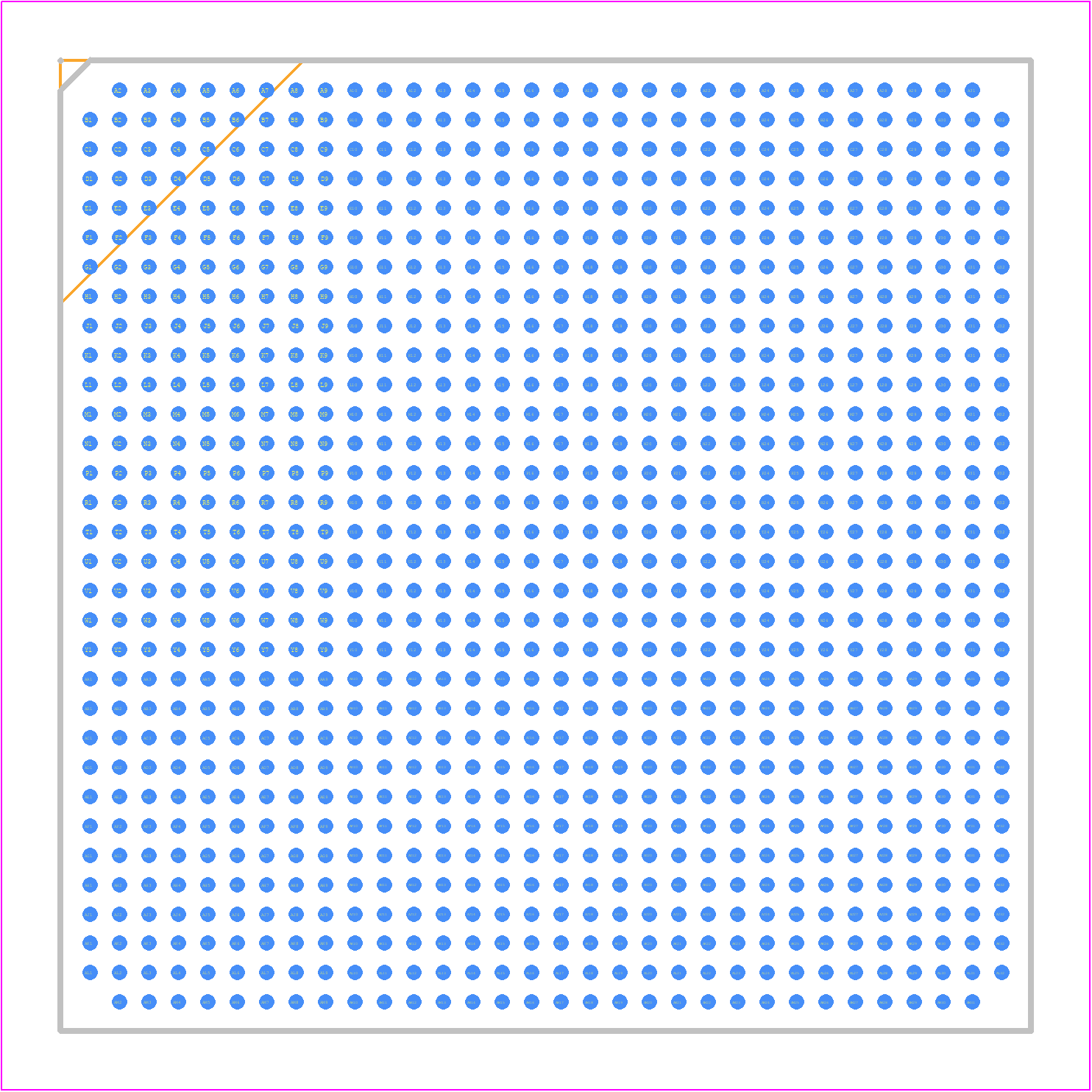

EP2S180F1020C3N - Intel PCB footprint - BGA - BGA - 1020 FBGA
click to zoom
3D Models
EP2S180F1020C3N - Intel  - 3D model - BGA - 1020 FBGA
click to zoom

EP2S180F1020C3N Details

  • Manufacturer Part Number:

    EP2S180F1020C3N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    33 X 33 MM, 1 MM PITCH, LEAD FREE, FBGA-1020

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    717 MHz

  • Combinatorial Delay of a CLB-Max:

    4.672 ns

  • JESD-30 Code:

    S-PBGA-B1020

  • JESD-609 Code:

    e1

  • Length:

    33 mm

  • Moisture Sensitivity Level:

    4

  • Number of CLBs:

    8970

  • Number of Inputs:

    742

  • Number of Logic Cells:

    179400

  • Number of Outputs:

    734

  • Number of Terminals:

    1020

  • Operating Temperature-Max:

    85 °C

  • Organization:

    8970 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1020,32X32,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 90 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    33 mm

EP2S180F1020C3N Frequently Asked Questions (FAQs)

  • The maximum power consumption of EP2S180F1020C3N is approximately 12W, but it can vary depending on the specific application and usage.
  • A reliable clocking scheme for EP2S180F1020C3N can be implemented by using a high-quality clock source, such as a crystal oscillator, and ensuring that the clock signal is properly routed and terminated to minimize skew and jitter.
  • The maximum operating frequency of EP2S180F1020C3N is 300 MHz, but it can be overclocked to higher frequencies with proper cooling and power management.
  • To optimize the pin-out of EP2S180F1020C3N, carefully review the datasheet and application notes to ensure that all necessary signals are routed correctly, and consider using a pin-out planning tool or consulting with an experienced FPGA designer.
  • Thermal management is critical for EP2S180F1020C3N, as it can operate at high temperatures. Ensure proper airflow, use a heat sink if necessary, and monitor temperature sensors to prevent overheating.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

EP2S180F1020C3N Overview

Use the download button to access the EP2S180F1020C3N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2S1, or try a keyword search, such as Field Programmable Gate Arrays
