EP4CE10U14I7N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone IV E 645 LABs 179 IOs

Download EP4CE10U14I7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

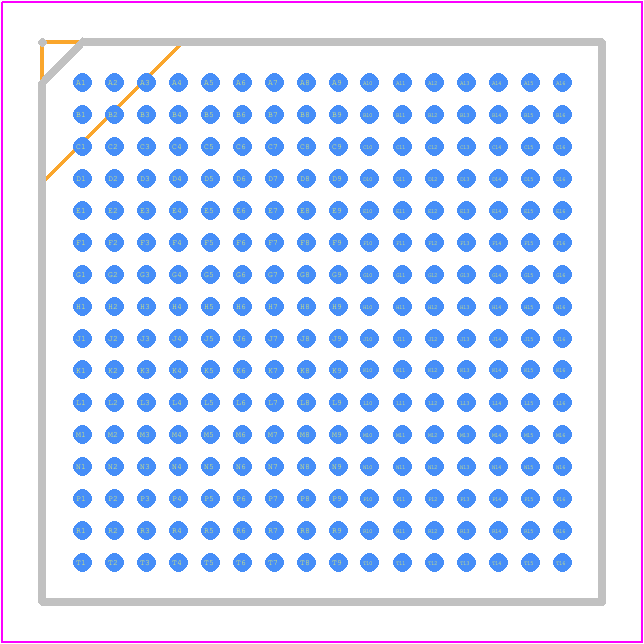

EP4CE10U14I7N - Intel PCB footprint - BGA - BGA - EP4CE10U14I7N
click to zoom
3D Models
EP4CE10U14I7N - Intel  - 3D model - BGA - EP4CE10U14I7N
click to zoom

EP4CE10U14I7N Details

  • Manufacturer Part Number:

    EP4CE10U14I7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    645

  • Number of Inputs:

    179

  • Number of Logic Cells:

    10320

  • Number of Outputs:

    179

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    645 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

EP4CE10U14I7N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP4CE10U14I7N is -40°C to 100°C.
  • To implement a clock domain crossing (CDC) in the EP4CE10U14I7N, you can use a synchronizer circuit or a FIFO-based CDC. The synchronizer circuit uses a pair of flip-flops to resynchronize the signal, while the FIFO-based CDC uses a FIFO to buffer the data and a clock domain crossing circuit to synchronize the clock.
  • The maximum frequency of the EP4CE10U14I7N is 500 MHz.
  • To optimize the power consumption of the EP4CE10U14I7N, you can use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling. You can also use the Intel Quartus II software to optimize the power consumption of your design.
  • The maximum current consumption of the EP4CE10U14I7N is 1.1 A.
