EP4CE30F19A7N - Intel

Description: FPGA - Field Programmable Gate Array Cyclone IV E

Download EP4CE30F19A7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

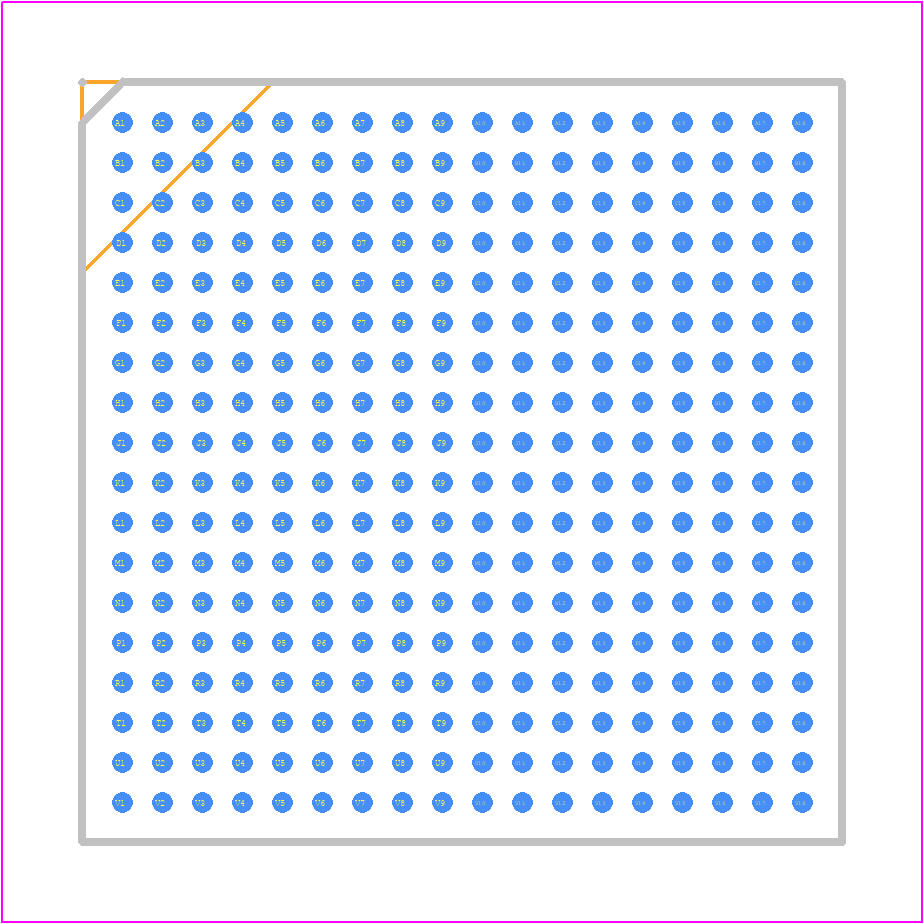

EP4CE30F19A7N - Intel PCB footprint - BGA - BGA - 324-Pin FineLine Ball-Grid Array (FBGA) - Wire Bond - A:1.90
click to zoom
3D Models
EP4CE30F19A7N - Intel  - 3D model - BGA - 324-Pin FineLine Ball-Grid Array (FBGA) - Wire Bond - A:1.90
click to zoom

EP4CE30F19A7N Details

  • Manufacturer Part Number:

    EP4CE30F19A7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    LEAD FREE, FBGA-324

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Clock Frequency-Max:

    472.5 MHz

  • JESD-30 Code:

    S-PBGA-B324

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    193

  • Number of Outputs:

    193

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1803 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA324,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

EP4CE30F19A7N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP4CE30F19A7N is -40°C to 100°C.
  • To implement a CDC in the EP4CE30F19A7N, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.
  • The recommended power-up sequence for the EP4CE30F19A7N is to power up the core voltage (VCC) first, followed by the I/O voltage (VCCIO), and then the configuration voltage (VCC_CFG).
  • To optimize timing closure for the EP4CE30F19A7N, use the Intel Quartus II software to analyze and optimize the design's timing, and consider using techniques such as pipelining, retiming, and clock gating.
  • The maximum current draw for the EP4CE30F19A7N is 1.5 A for the core voltage (VCC) and 0.5 A for the I/O voltage (VCCIO).
