SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
16 A
Drain-source On Resistance-Max:
0.019 Ω
FET Technology:
HIGH ELECTRON MOBILITY
Feedback Cap-Max (Crss):
8 pF
JESD-30 Code:
R-XUUC-X21
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
21
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
UNCASED CHIP
Polarity/Channel Type:
N-CHANNEL
Pulsed Drain Current-Max (IDM):
50 A
Surface Mount:
YES
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Application:
SWITCHING
Transistor Element Material:
GALLIUM NITRIDE
EPC2111 Frequently Asked Questions (FAQs)
A good PCB layout for the EPC2111 involves keeping the high-frequency switching node (SW) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power loops. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the EPC2111 operates within its SOA, monitor the drain-source voltage (Vds), drain current (Id), and junction temperature (Tj). Keep Vds below 100V, Id below 30A, and Tj below 150°C. Use the thermal resistance (Rth) and power dissipation (PD) to estimate Tj.
The recommended gate drive voltage for the EPC2111 is between 5V and 10V. A higher gate drive voltage can reduce switching losses, but may also increase gate charge and reduce reliability.
To minimize EMI, use a shielded layout, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke or ferrite bead on the input and output lines. Also, consider using a spread-spectrum clock or frequency hopping to reduce EMI.
The maximum allowed dv/dt for the EPC2111 is 50V/ns. Exceeding this limit can cause the device to malfunction or fail.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPC2111 Overview

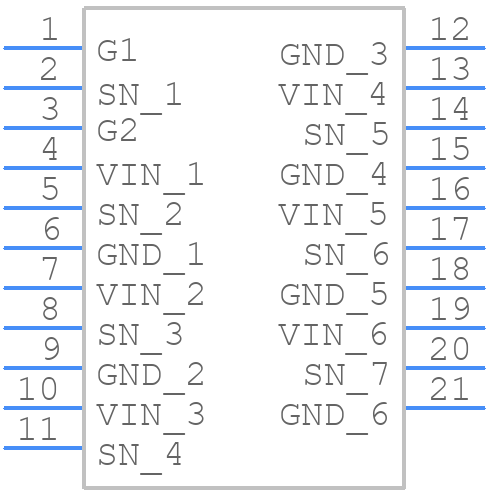

Use the download button to access the EPC2111 schematic symbol, PCB footprint, and 3D model.
