EPF6016QC208-2N Details

• Manufacturer Part Number:

  EPF6016QC208-2N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

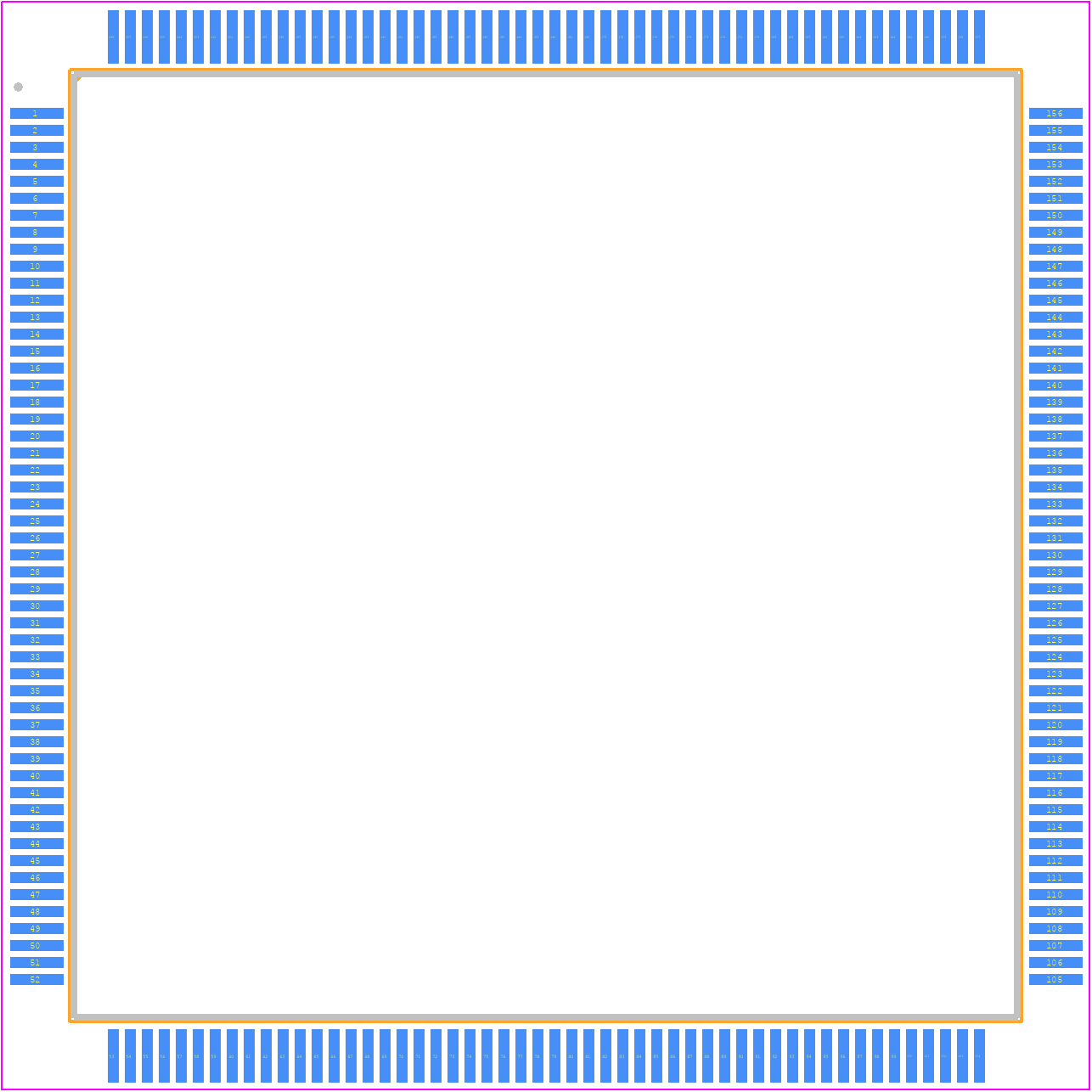

• Package Description:

  PLASTIC, QFP-208

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Additional Feature:

  CAN ALSO BE USED 16000 LOGIC GATES

• Clock Frequency-Max:

  153 MHz

• JESD-30 Code:

  S-PQFP-G208

• JESD-609 Code:

  e3

• Length:

  28 mm

• Moisture Sensitivity Level:

  3

• Number of Dedicated Inputs:

  4

• Number of I/O Lines:

  171

• Number of Inputs:

  171

• Number of Outputs:

  171

• Number of Terminals:

  208

• Operating Temperature-Max:

  85 °C

• Organization:

  4 DEDICATED INPUTS, 171 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• Programmable Logic Type:

  LOADABLE PLD

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  28 mm
