EPM240F100C4N - Intel

Description: CPLD MAX® II Family 192 Macro Cells 247.5MHz 0.18um Technology 2.5V/3.3V 100-Pin TFBGA Tray

Download EPM240F100C4N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

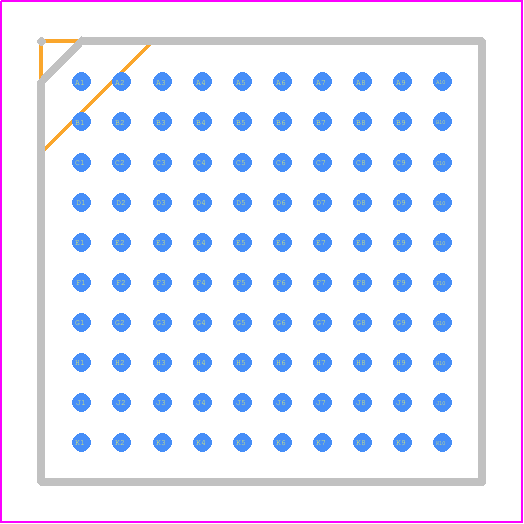

EPM240F100C4N - Intel PCB footprint - BGA - BGA - 100 pin fbga
click to zoom
3D Models
EPM240F100C4N - Intel  - 3D model - BGA - 100 pin fbga
click to zoom

EPM240F100C4N Details

  • Manufacturer Part Number:

    EPM240F100C4N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-100

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    5.4

  • Additional Feature:

    IT CAN ALSO OPERATE AT 3.3V

  • Clock Frequency-Max:

    166.6 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • JTAG BST:

    YES

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    80

  • Number of Inputs:

    80

  • Number of Macro Cells:

    192

  • Number of Outputs:

    80

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Organization:

    0 DEDICATED INPUTS, 80 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA100,10X10,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Programmable Logic Type:

    FLASH PLD

  • Propagation Delay:

    6.1 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

EPM240F100C4N Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCINT first, followed by VCCIO, and then configure the device. This ensures that the internal voltage regulators are powered up correctly.
  • The CCLK should be driven low during power-up to prevent the device from configuring prematurely. Once the power supplies are stable, the CCLK can be driven high to initiate configuration.
  • The maximum frequency for the CCLK is 10 MHz. Exceeding this frequency may cause configuration errors or device damage.
  • To ensure reliable configuration, use a robust configuration clock source, ensure the configuration data is transmitted at a stable frequency, and use a reliable configuration interface (e.g., JTAG or Passive Serial).
  • The recommended termination for the I/O banks is to use a 1 kΩ to 10 kΩ pull-up resistor to VCCIO or a 1 kΩ to 10 kΩ pull-down resistor to GND, depending on the specific application requirements.
