The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the device away from other heat sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable programming and configuration of the device, use a reliable programming tool, such as the Intel Quartus II software, and follow the recommended programming and configuration procedures outlined in the datasheet and user manuals.
For power supply decoupling and filtering, use a combination of ceramic and electrolytic capacitors, and consider adding a ferrite bead or a power inductor to filter out high-frequency noise. Place decoupling capacitors close to the device's power pins.
Handle the device by the body, avoiding touching the pins or electrical contacts. Store the device in an anti-static bag or wrap it in anti-static material, and avoid exposing it to extreme temperatures, humidity, or physical stress.
For signal integrity and termination, use a controlled impedance PCB design, and consider using series termination resistors or Thevenin termination for high-speed signals. Also, ensure that the signal traces are properly routed and matched to minimize reflections and signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM3032ATI44-10N Overview

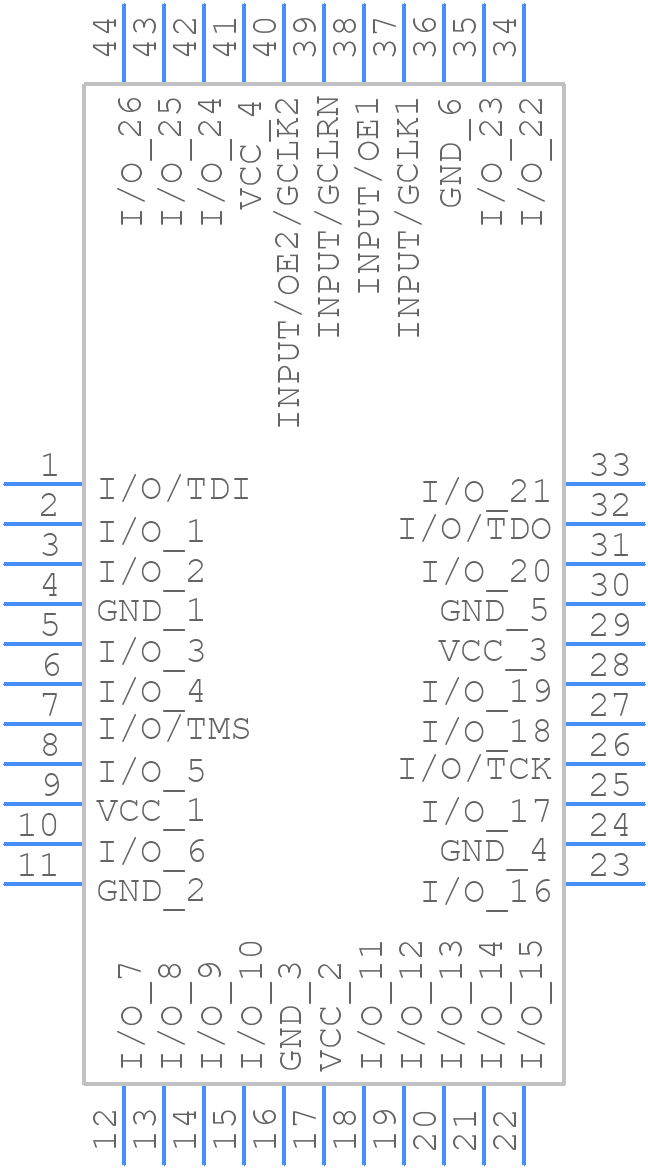

Use the download button to access the EPM3032ATI44-10N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM30,
or try a keyword search, such as Programmable Logic Devices
