The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. Intel provides a reference design guide for PCB layout.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which provides a reset signal to the EPM3512AQC208-10N when the power supply voltage is below a certain threshold.
When selecting a clock source, consider the frequency accuracy, jitter, and phase noise requirements of the EPM3512AQC208-10N. A high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), is recommended to ensure reliable operation.
To ensure reliable configuration of the EPM3512AQC208-10N during power-up, use a configuration device, such as an EPCS16 or EPCS64, which provides a reliable and secure configuration storage solution.
Thermal management considerations for the EPM3512AQC208-10N include providing adequate airflow, using a heat sink or thermal interface material, and ensuring that the device is operated within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM3512AQC208-10N Overview

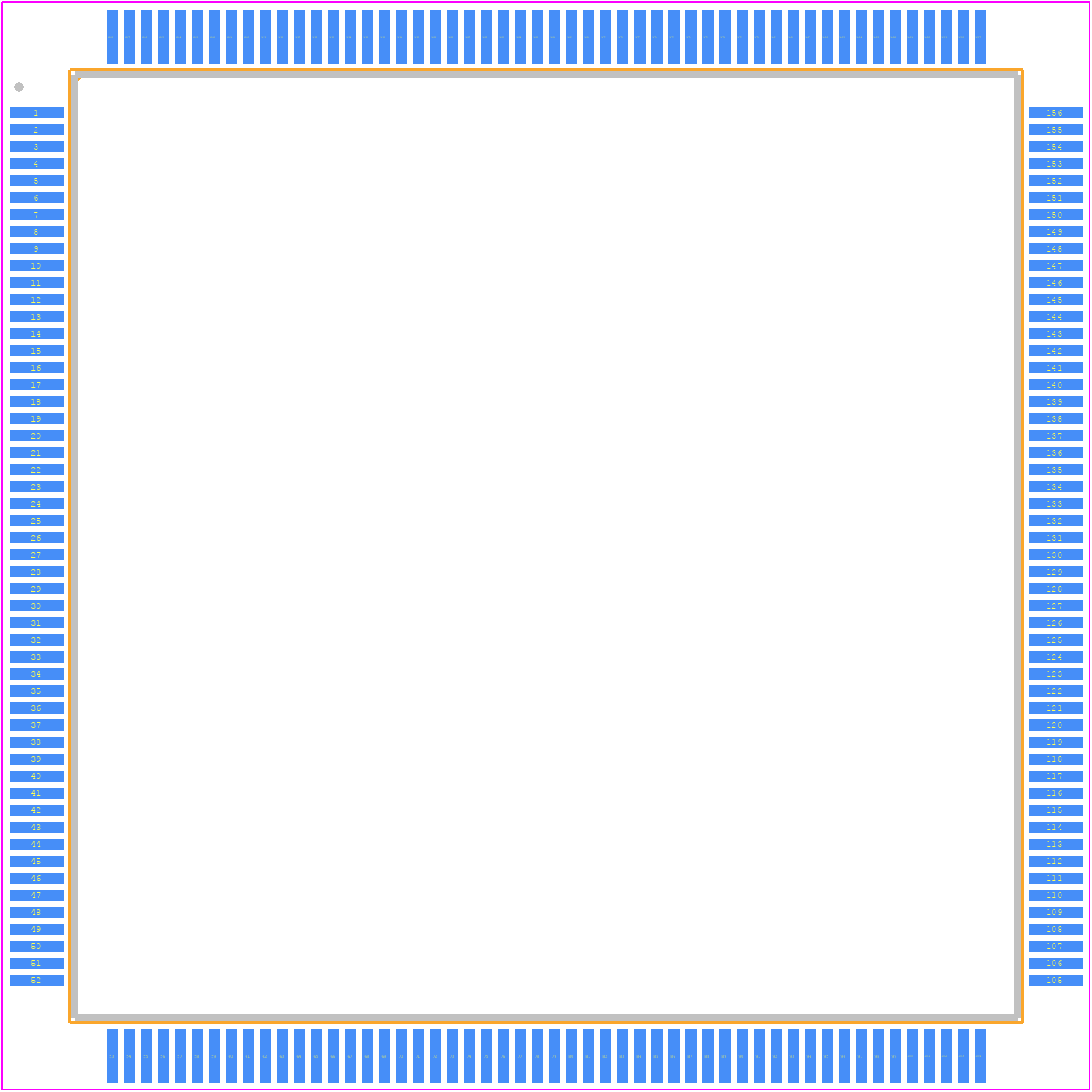

Use the download button to access the EPM3512AQC208-10N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM35,
or try a keyword search, such as Programmable Logic Devices
