Intel provides a PCB design guide and thermal management guidelines in their documentation, which can be found on their website. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
Intel recommends using an external POR circuit with a voltage supervisor IC, such as the MAX809, to ensure a reliable power-on reset. The datasheet provides guidelines for the POR circuit design.
The EPM7032AETC44-4N requires a JTAG programming voltage of 3.3V, and the JTAG clock frequency should be limited to 10 MHz. Intel provides more detailed programming guidelines in their documentation.
To ensure signal integrity and reduce EMI, it's essential to follow Intel's guidelines for signal routing, termination, and shielding. Additionally, using a 4-layer PCB with a solid ground plane and a low-impedance power distribution network can help reduce EMI.
The internal oscillator on the EPM7032AETC44-4N has a limited frequency range and accuracy. It's recommended to use an external clock source for critical applications. Intel provides more information on the internal oscillator's limitations in their documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7032AETC44-4N Overview

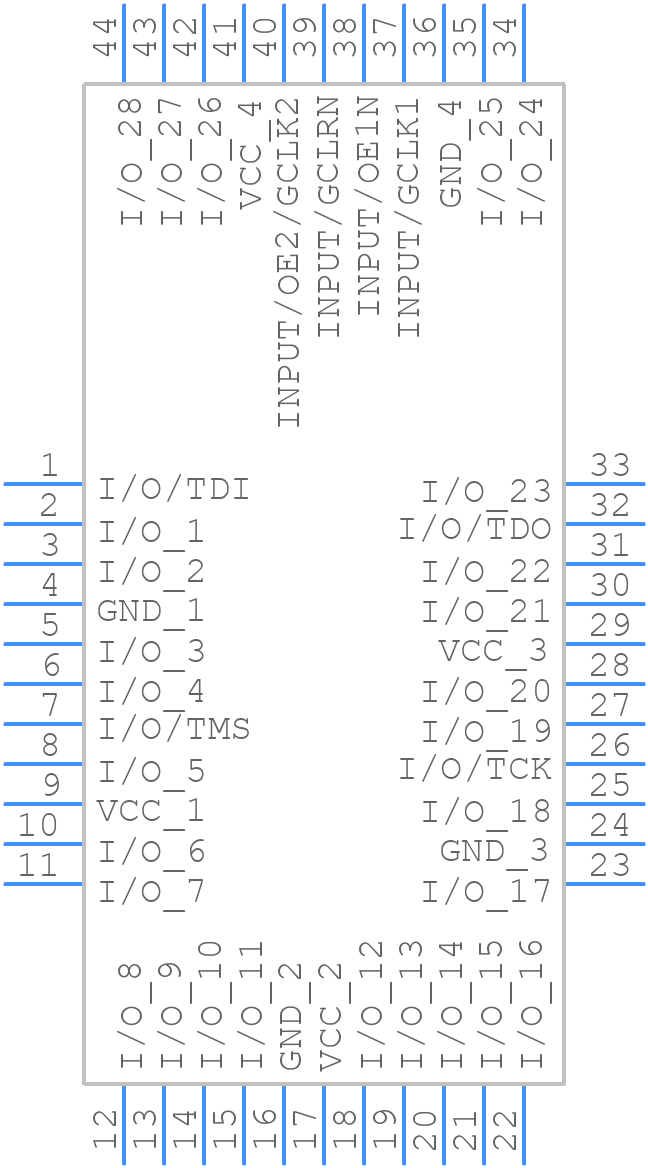

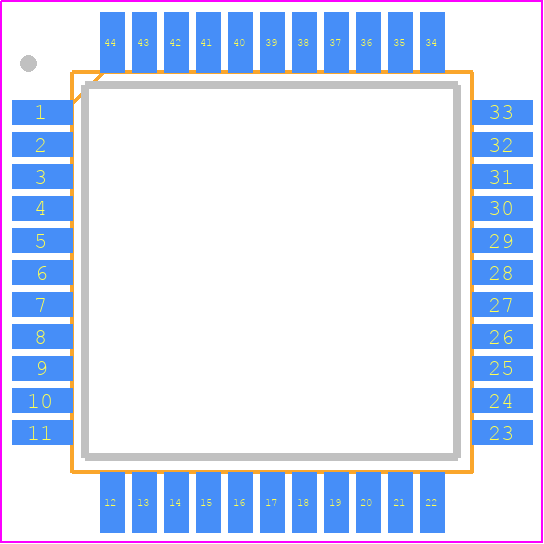

Use the download button to access the EPM7032AETC44-4N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM70,
or try a keyword search, such as Programmable Logic Devices
