EPM7128STC100-15N footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

PCB Footprints

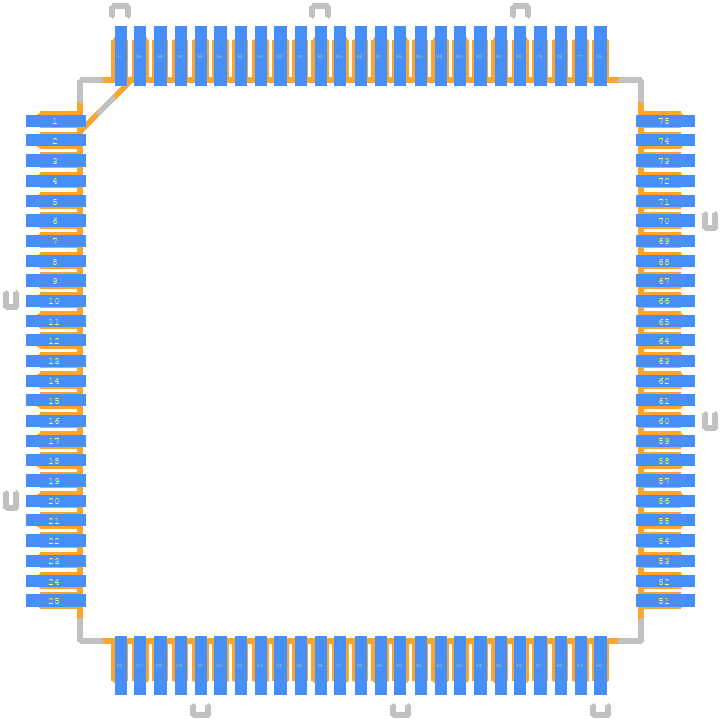

EPM7128STC100-15N - Intel PCB footprint - Other - Other - QFP50P1600X1600X120-100N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM7128STC100-15N
Part Number EPM7128STC100-15N
Manufacturer Intel
Pin Count 100
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P1600X1600X120-100N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM7128STC100-15N Details

Manufacturer Part Number:
EPM7128STC100-15N
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
TQFP-100
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max:
100 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQFP-G100
JESD-609 Code:
e3
JTAG BST:
YES
Length:
14 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
84
Number of Macro Cells:
128
Number of Terminals:
100
Operating Temperature-Max:
70 °C
Organization:
0 DEDICATED INPUTS, 84 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFQFP
Package Equivalence Code:
TQFP100,.63SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE, FINE PITCH
Programmable Logic Type:
EE PLD
Propagation Delay:
15 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.27 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
14 mm

EPM7128STC100-15N Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Use the Intel Quartus Prime software to program and configure the FPGA. Ensure that the device is properly powered and clocked before programming, and follow the recommended programming and configuration procedures outlined in the Quartus Prime documentation.
The power sequencing requirements are critical for the device. The VCCINT and VCCIO pins should be powered up simultaneously, followed by the VCCA and VCCD pins. The power supply voltage should be stable and within the recommended operating range before configuring the device.
Handle the device by the body or the pins, avoiding touching the die or any other exposed internal components. Store the device in an anti-static bag or wrap it in anti-static material to prevent electrostatic discharge (ESD) damage.
The device operates in a temperature range of 0°C to 85°C, with a relative humidity of 5% to 95%. It is also sensitive to moisture, so it should be stored in a dry environment.

Trust Checks

System Verified

EPM7128STC100-15N Overview

Use the download button to access the EPM7128STC100-15N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EPM71, or try a keyword search, such as Programmable Logic Devices

Parts related to EPM7128STC100-15N

Showing 0 results

Image	Part Number	Model
	EPM7128STC100-15 Altera Corporation EE PLD, 15ns, 128-Cell, CMOS, PQFP100
	EPM7128STC100-15 Intel Corporation EE PLD, 15ns, 128-Cell, CMOS, PQFP100
For a full list of alternate parts for EPM7128STC100-15N, check out Findchips.com
