EQCO30R5.D - Microchip

Description: Microchip EQCO30R5.D, Adaptive Cable Equaliser 182 (Canare) m, 219 (Belden) m, 252 (Gepco) m 3.15 → 3.45 V 16-Pin

Download EQCO30R5.D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

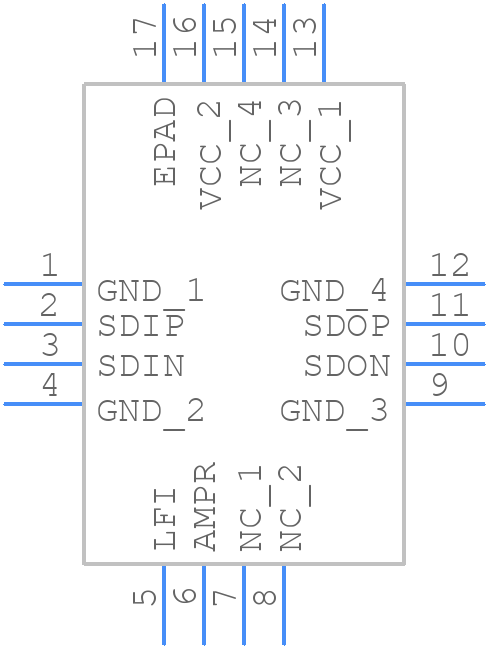

Symbol
EQCO30R5.D - Microchip - PCB symbol
click to zoom
PCB Footprints
EQCO30R5.D - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFP16
click to zoom
3D Models
EQCO30R5.D - Microchip - 3D model - Quad Flat No-Lead - QFP16
click to zoom

EQCO30R5.D Details

  • Manufacturer Part Number:

    EQCO30R5.D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    QFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

EQCO30R5.D Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground traces as short as possible, and use a common mode choke to reduce EMI.
  • Use a thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Avoid overheating by keeping the device within the specified temperature range of -40°C to +125°C.
  • The recommended input voltage range is 2.97V to 3.63V. Operating outside this range may affect the device's performance and reliability.
  • Power up the device in the following sequence: VDD, VDDQ, and then VREF. Power down in the reverse sequence. Ensure that VDD and VDDQ are powered up simultaneously to prevent damage to the device.
  • Use a redundant design, implement error correction mechanisms, and ensure that the device is operated within the specified temperature range. Also, follow Microchip's guidelines for high-reliability applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EQCO30R5.D Overview

Use the download button to access the EQCO30R5.D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EQCO3, or try a keyword search, such as Other Telecom ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
