EQCO62R20.3 - Microchip

Description: Microchip EQCO62R20.3, Adaptive Cable Equaliser 46 (Canare) m, 58 (Balden) m, 68 (Gepco) m 1.15 → 1.25 V 16-Pin

Download EQCO62R20.3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

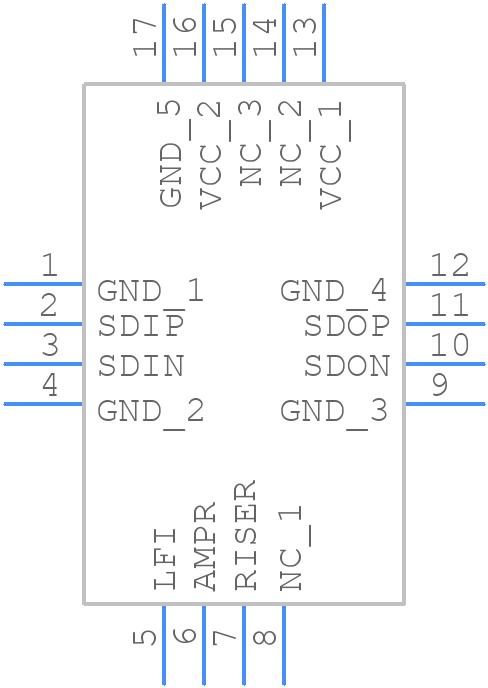

EQCO62R20.3 - Microchip - PCB symbol
click to zoom
PCB Footprints
EQCO62R20.3 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFP16
click to zoom
3D Models
EQCO62R20.3 - Microchip - 3D model - Quad Flat No-Lead - QFP16
click to zoom

EQCO62R20.3 Details

  • Manufacturer Part Number:

    EQCO62R20.3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, 0.90 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, PLASTIC, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    QFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

EQCO62R20.3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND for decoupling.
  • Use a high-quality, low-noise power supply with a voltage regulator to ensure a stable 3.3V supply. Add a 10uF capacitor between VCC and GND for decoupling. Ensure the power supply can provide the required current.
  • The recommended clock frequency is 20MHz, but it can operate up to 40MHz. However, higher frequencies may require additional decoupling capacitors and careful PCB layout.
  • Set the SCL and SDA pins as open-drain outputs. Use pull-up resistors (1kΩ to 10kΩ) on the SCL and SDA lines. Ensure the I2C clock frequency is within the recommended range (100kHz to 400kHz).
  • The EQCO62R20.3 can operate from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat dissipation in your design.
