ESD204DQAR - Texas Instruments

Description: 4-Channel Low-Capacitance Surge and ESD Protection Diode

Download ESD204DQAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

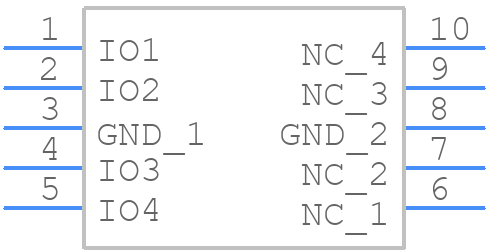

Symbol
ESD204DQAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ESD204DQAR - Texas Instruments PCB footprint - Other - Other - ESD204DQAR-2
click to zoom
3D Models
ESD204DQAR - Texas Instruments - 3D model - Other - ESD204DQAR-2
click to zoom

ESD204DQAR Details

  • Manufacturer Part Number:

    ESD204DQAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Max:

    7.9 V

  • Breakdown Voltage-Min:

    5 V

  • Breakdown Voltage-Nom:

    6.45 V

  • Case Connection:

    CATHODE

  • Clamping Voltage-Max:

    11.5 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PSSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    50 W

  • Number of Elements:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.6 V

  • Reverse Current-Max:

    0.01 µA

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

ESD204DQAR Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD204DQAR involves keeping the device close to the connector, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a common ground point for the device and the connector.
  • The capacitor values for ESD204DQAR depend on the specific application and the desired level of ESD protection. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of the system.
  • The maximum operating temperature for ESD204DQAR is 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, ESD204DQAR is suitable for high-speed applications up to 10 Gbps. However, it's essential to follow proper PCB layout and routing guidelines to minimize signal degradation and ensure reliable operation.
  • To ensure that ESD204DQAR meets the required ESD protection standards, it's essential to follow the recommended layout and routing guidelines, and to test the device according to the relevant standards, such as IEC 61000-4-2.
